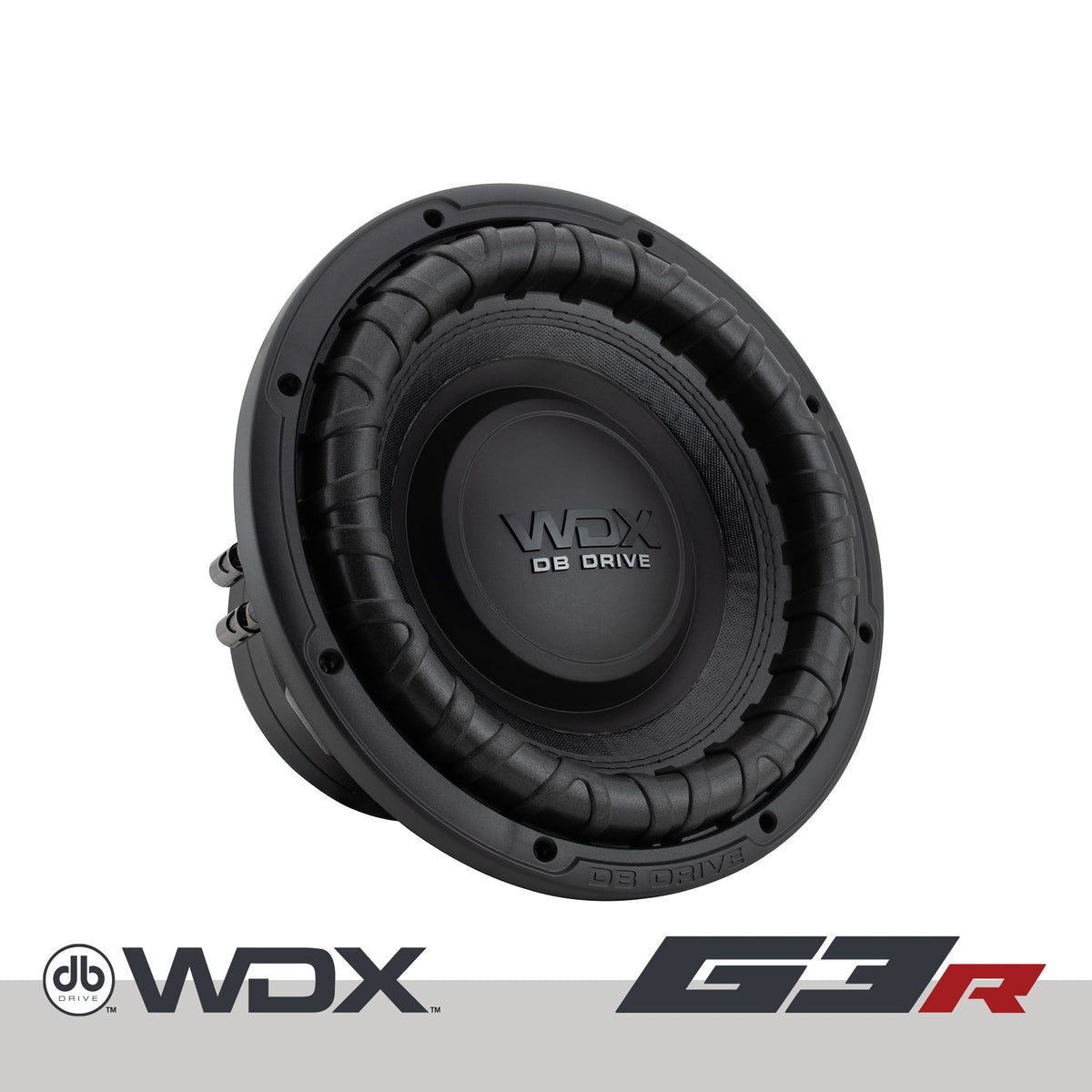

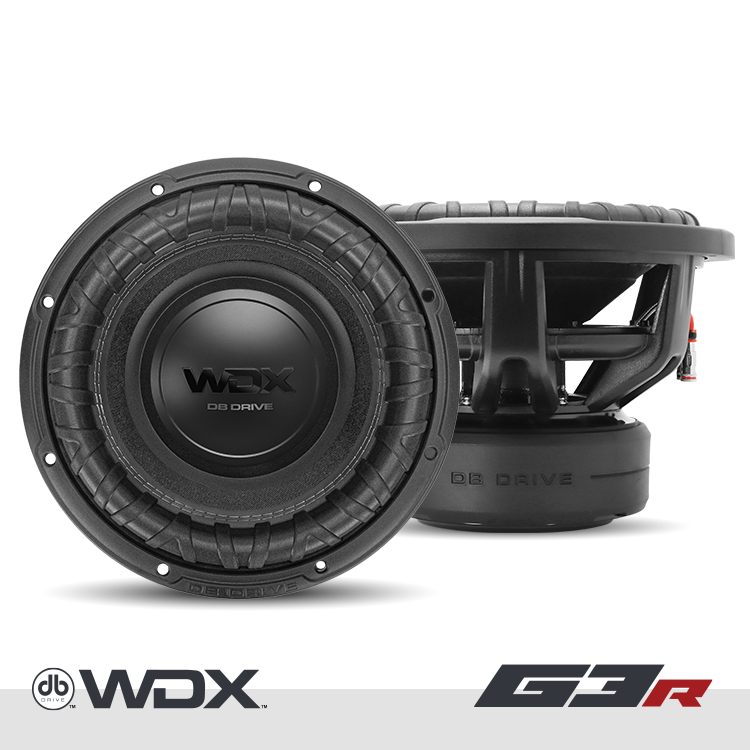

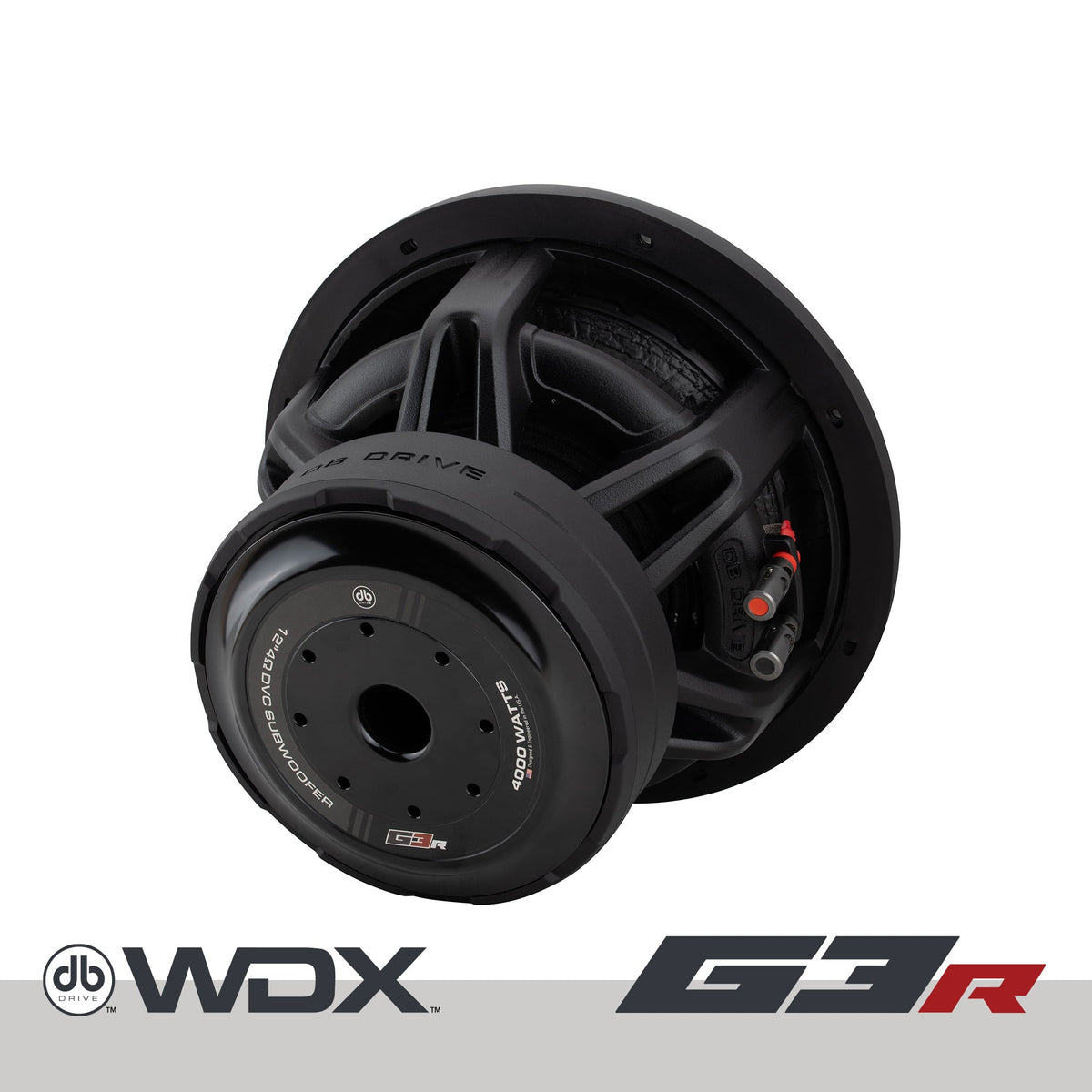

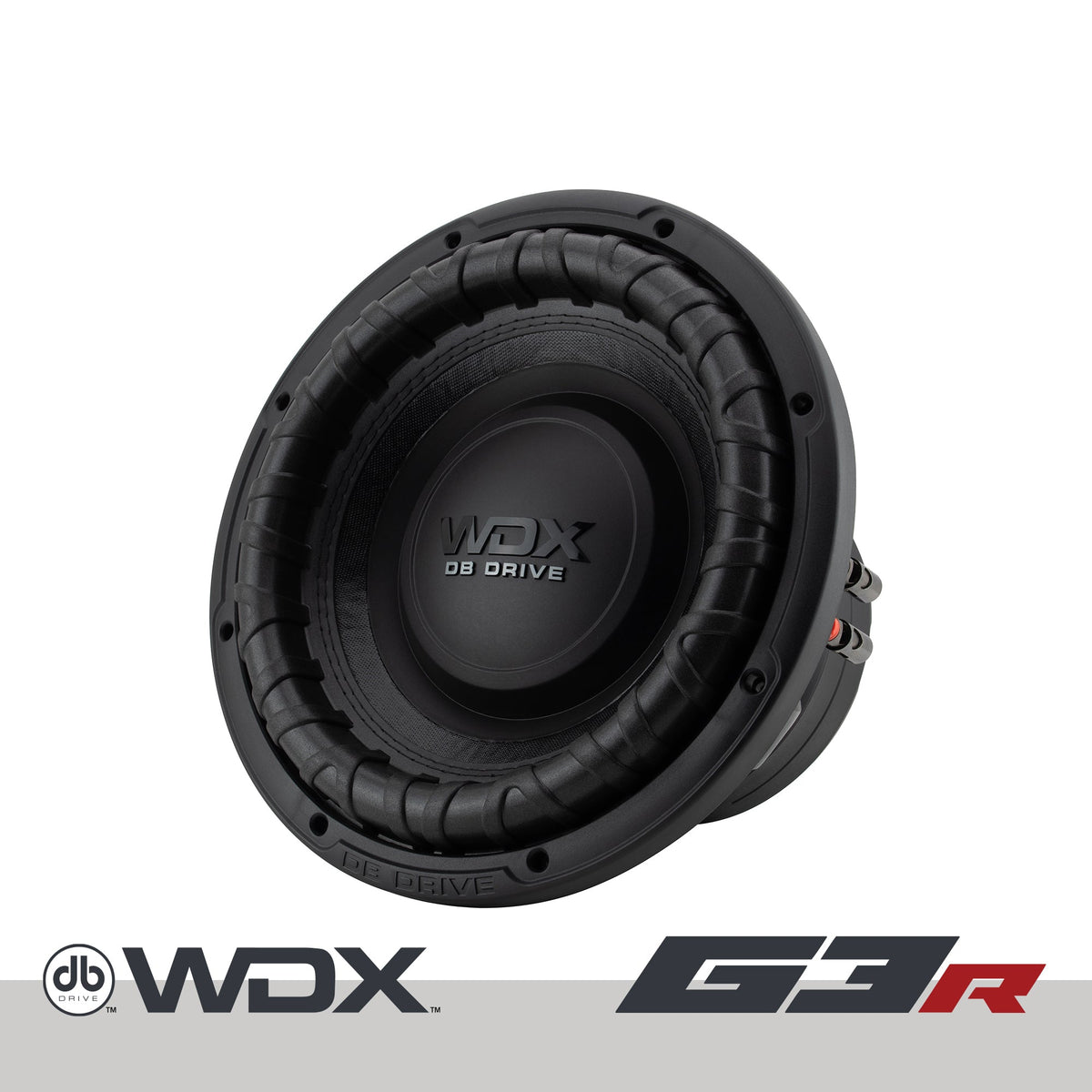

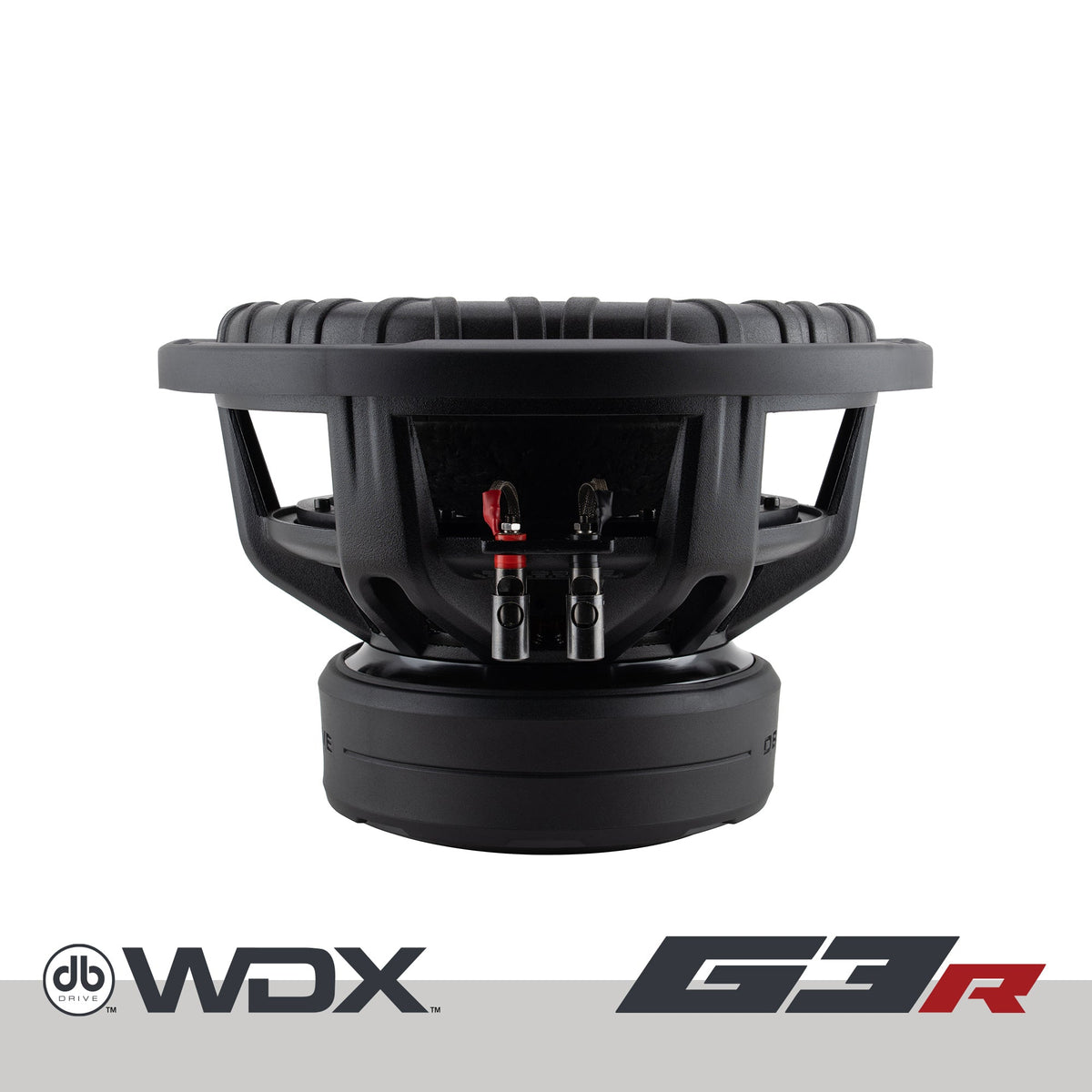

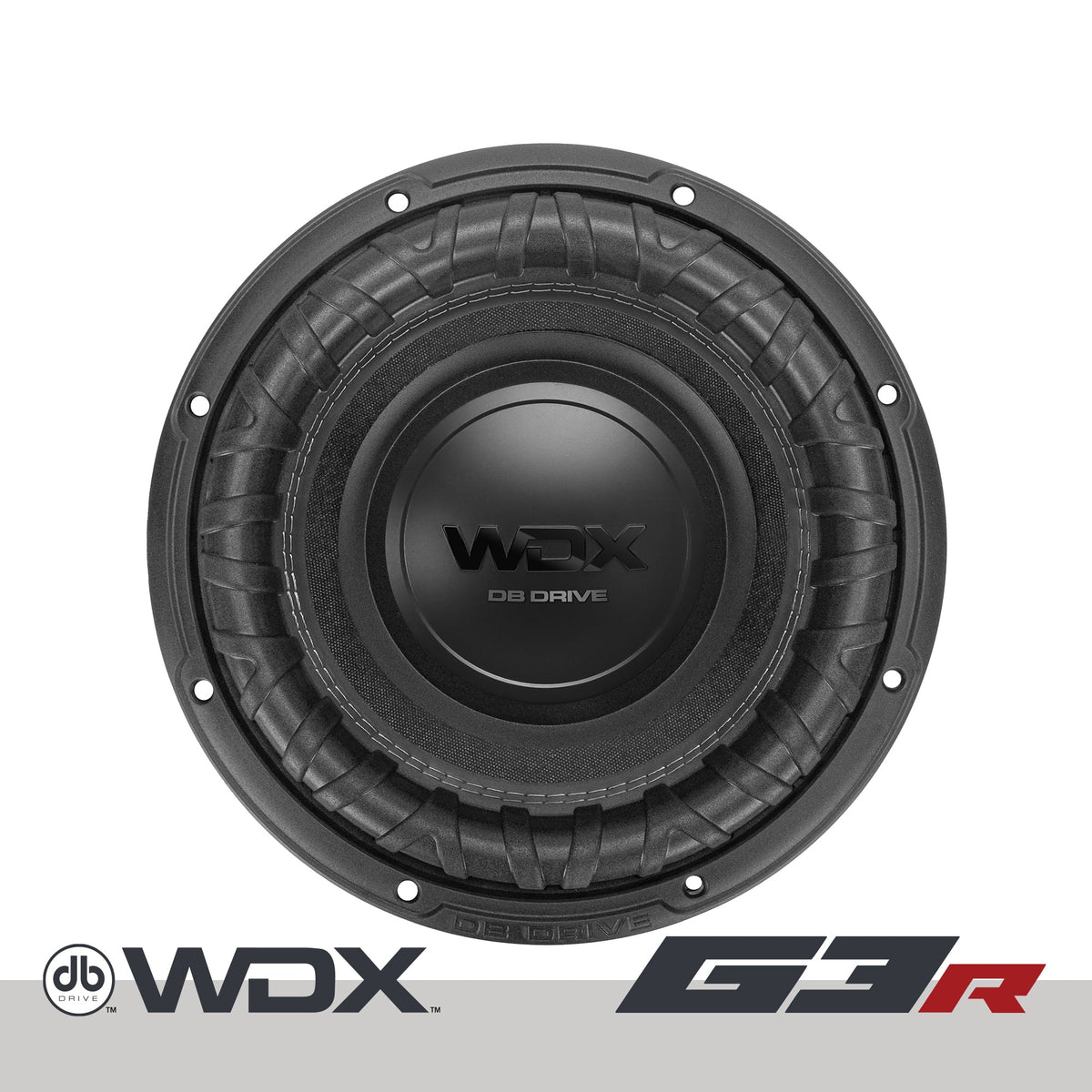

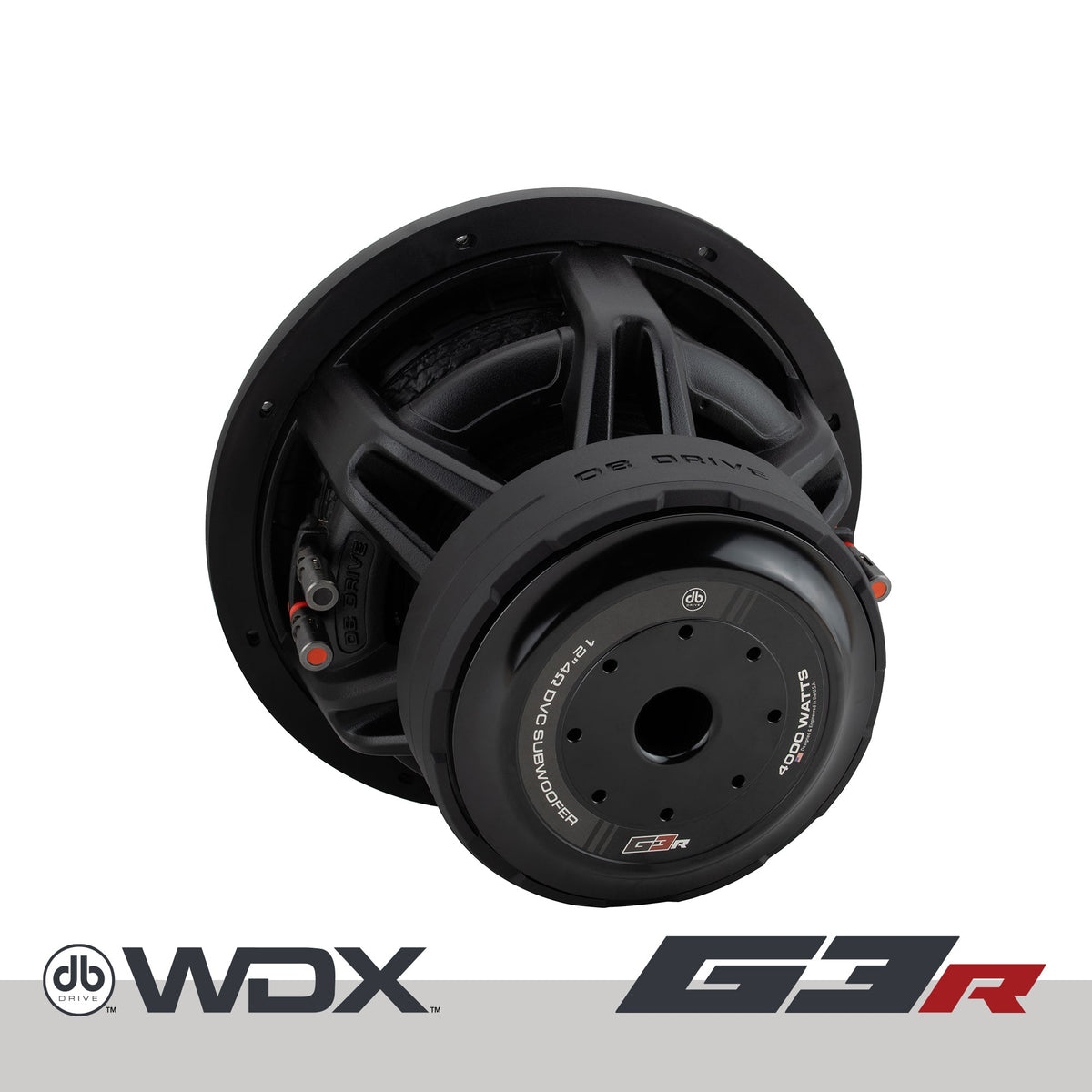

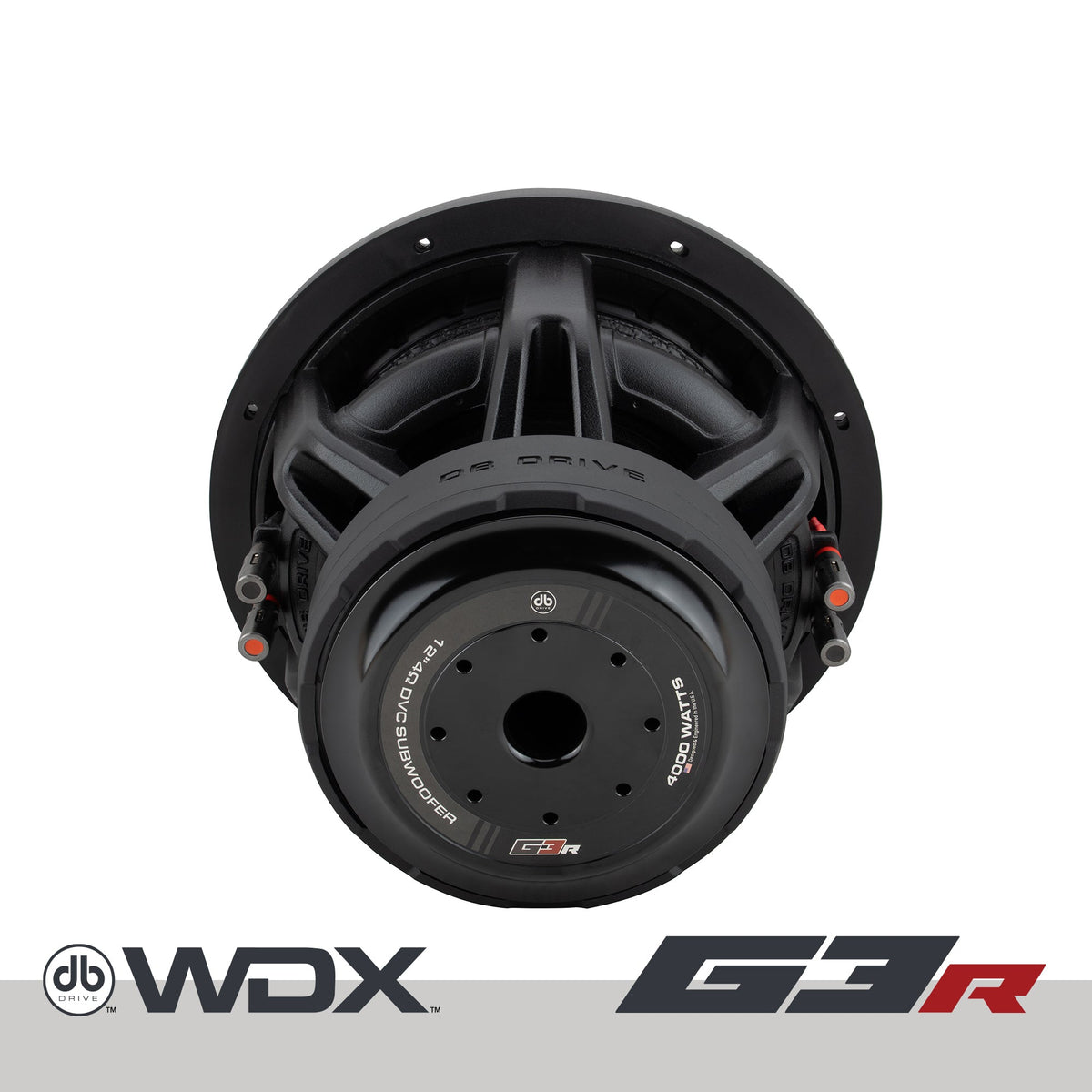

DB Drive WDX12G3R.4 : 12 in. Dual 4-Ohm Subwoofer

Specifications

• Dynamic Power Handling: 4000 Watts

• Nominal Power Handling: 2000 Watts

• Impedance: Dual 4Ω Voice Coil

• Resonant Frequency (fs): 30.155 Hz

• D.C. Voice Coil Resistance (Re): 2 x 3.2Ω

• Mechanical Quality Factor (Qms): 3.378

• Electrical Quality Factor (Qes): 0.792

• Total Quality Factor (Qts): 0.641

• Equivalent Air Volume (Vas): 30.026 L

• Mass of Diaphragm/Coil (Mms): 354.524 g

• Mechanical Compliance of Suspension (CMS): 78.576 mm/N

• Force Factor (BL): 23.304

• Sound Pressure Level (SPL): 82.0 dB

• X-Max: 23 mm

Features

• 3.0″ 4 layer Anodized aluminum high temperature voice coil

• Non-Pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

• Large gauge compression terminals

• Protective magnet cover

Description

Designed for true bass enthusiasts, the WDX12G3R.4 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 4000 watts dynamic (2000 watts nominal) The WDX12G3R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
