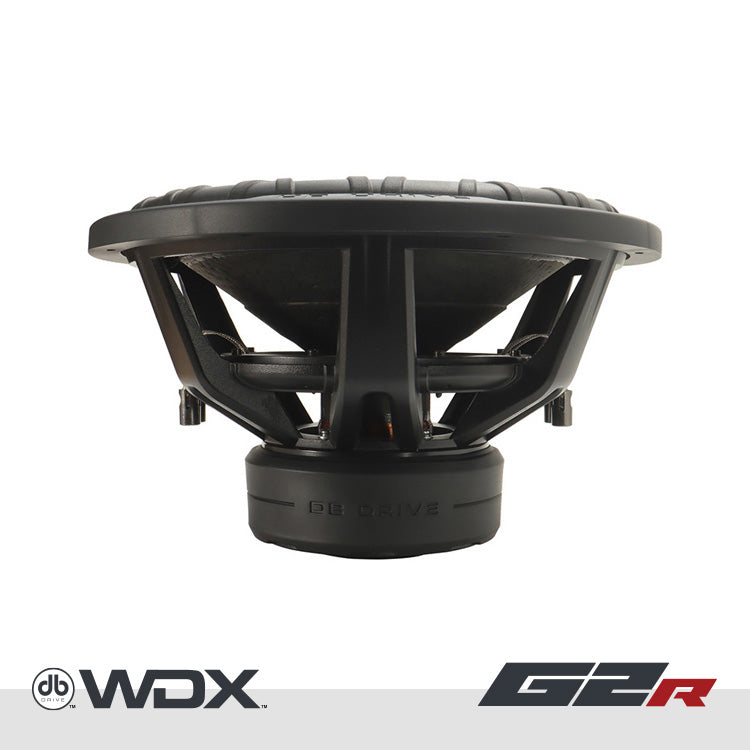

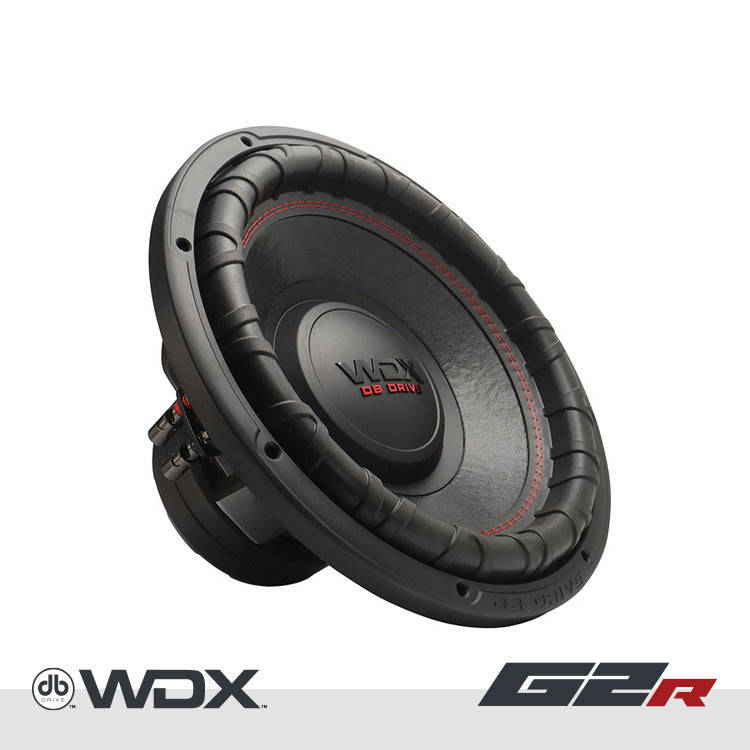

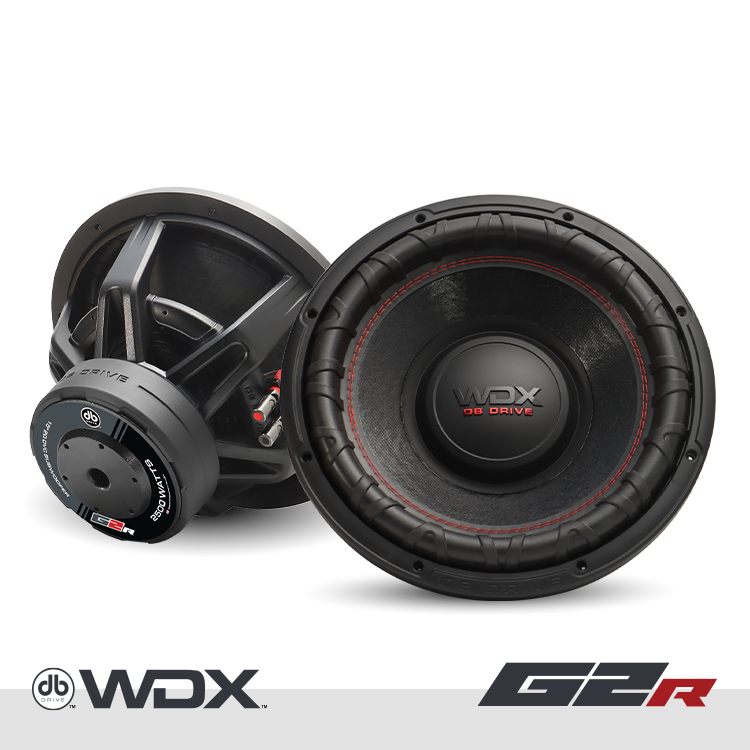

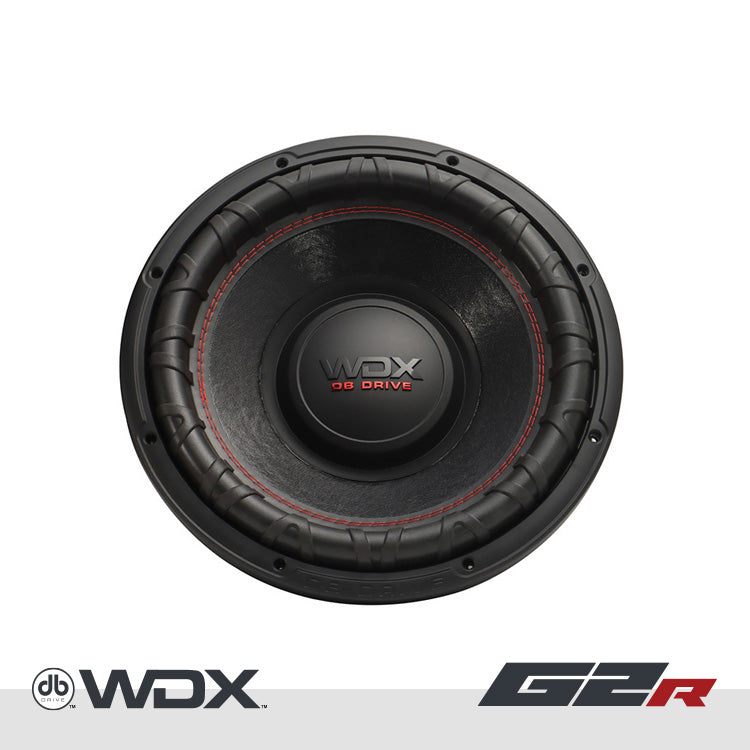

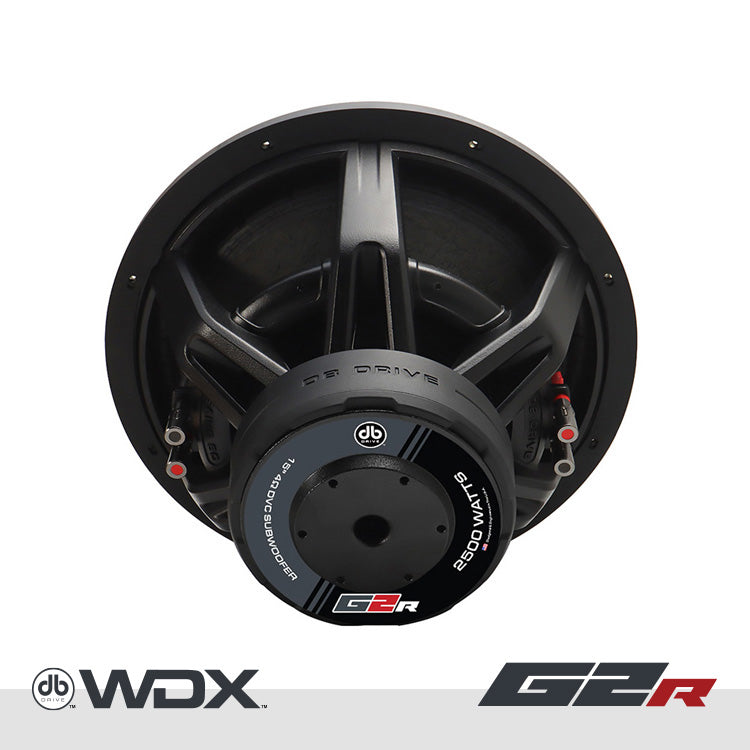

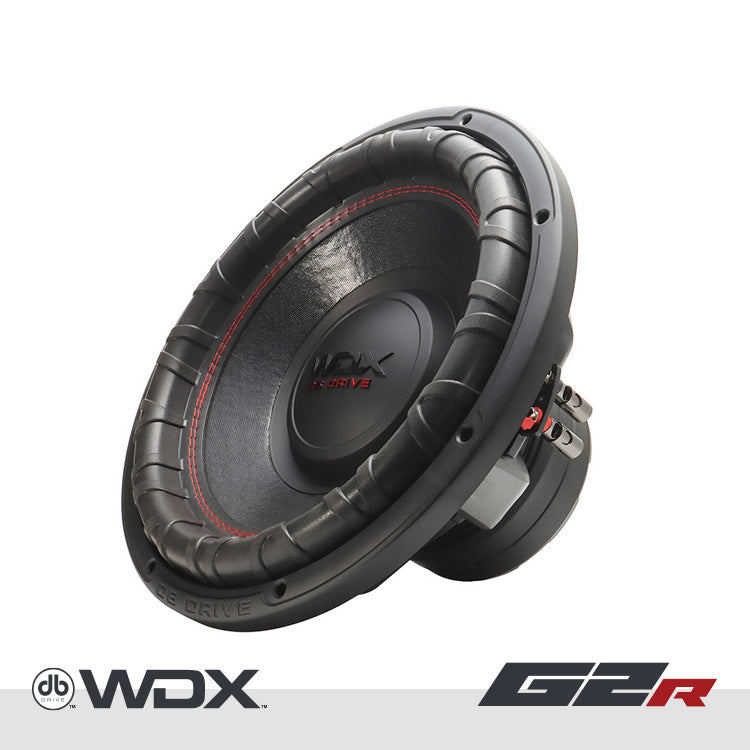

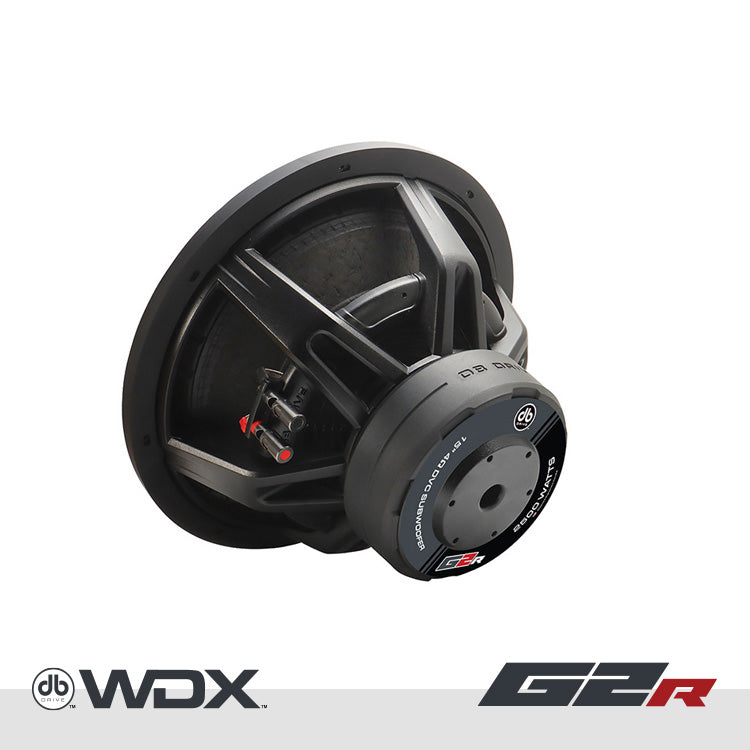

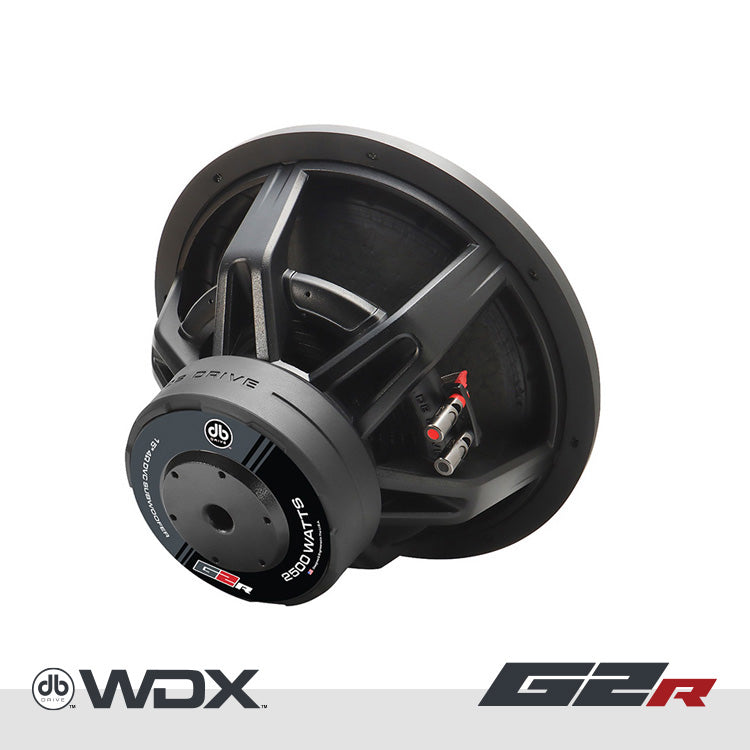

DB Drive WDX15G2R.2 : 15 in. Dual 2-Ohm Subwoofer

Features

• 3.0″ Anodized aluminum high temperature voice coil

• Non-Pressed paper cone

• Double-stitched reinforced foam surround

• Dual poly-cotton dampeners

• Die-cast aluminum vented basket

• Rubber gasket trim ring

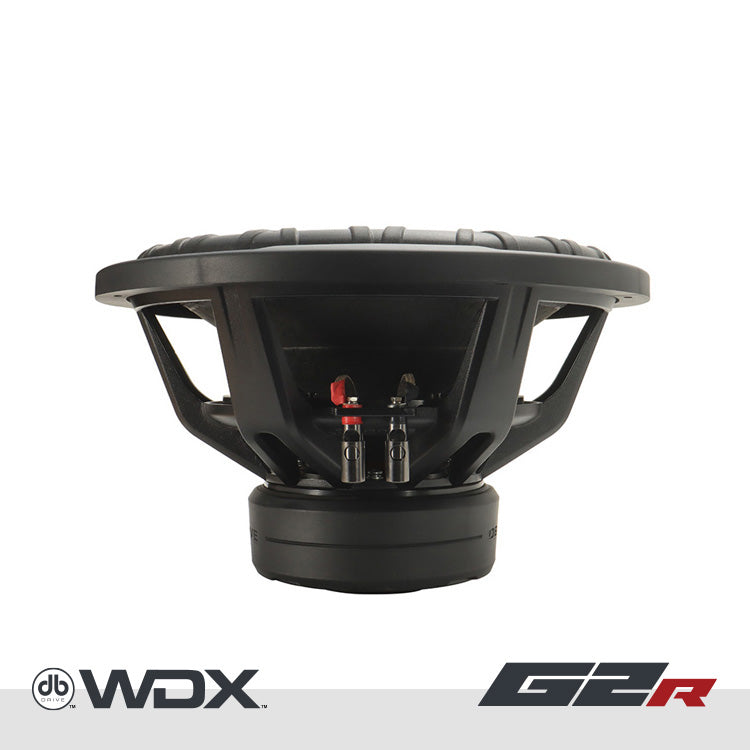

• Large gauge compression terminals

• Protective magnet cover

Specifications

• Dynamic Power Handling: 2500 Watts

• Nominal Power Handling: 1250 Watts

• Impedance: Dual 2Ω Voice Coil

• Resonant Frequency (fs): 29.48Hz

• D.C. Voice Coil Resistance (Re): 2 x 2Ω

• Mechanical Quality Factor (Qms): 3.90

• Electrical Quality Factor (Qes): 1.32

• Total Quality Factor (Qts): 0.99

• Equivalent Air Volume (Vas): 58.38 L

• Mechanical Compliance of Suspension (CMS): 63.561 mm/N

• Mass of Diaphragm/Coil (Mms): 458.59 g

• Force Factor (BL): 16.05

• Sound Pressure Level (SPL): 82.4 dB

Description

Designed for true bass enthusiasts, the WDX15G2R.2 subwoofers offer unmatched power and precision. •    Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. •    All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. •    The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. •    Built for Bass: Power handling up to 2500 watts dynamic (1250 watts nominal) The WDX15G2R.2 sets a new standard for earth-shaking bass. Ready to feel the difference?
