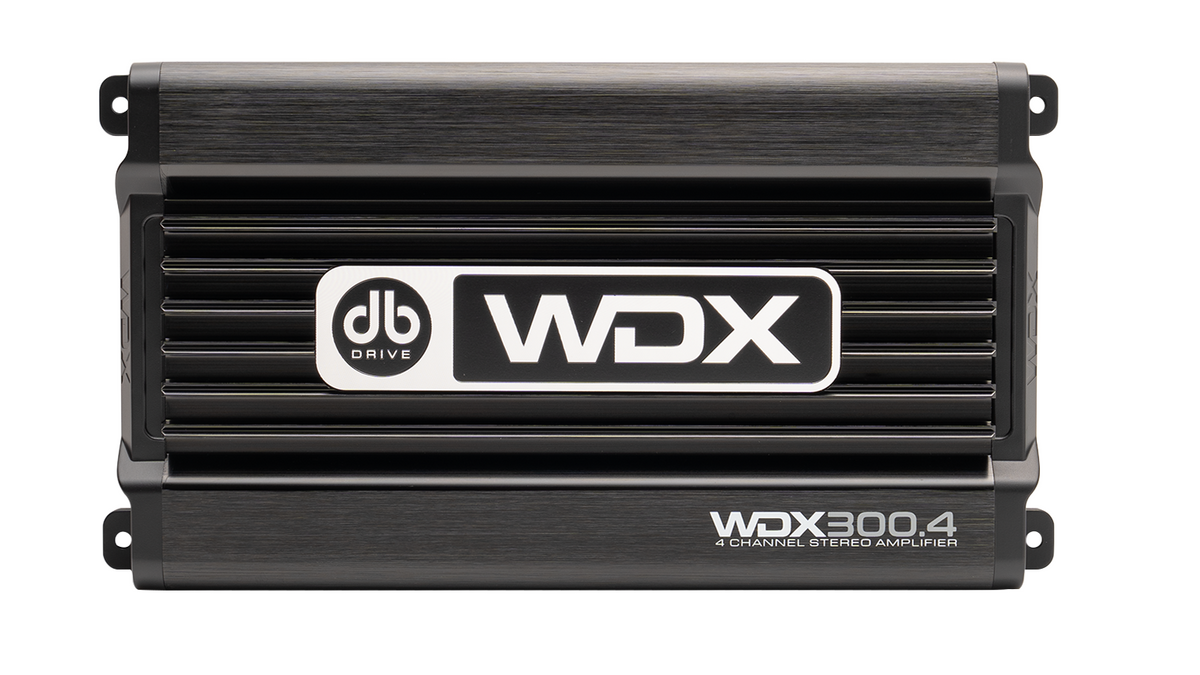

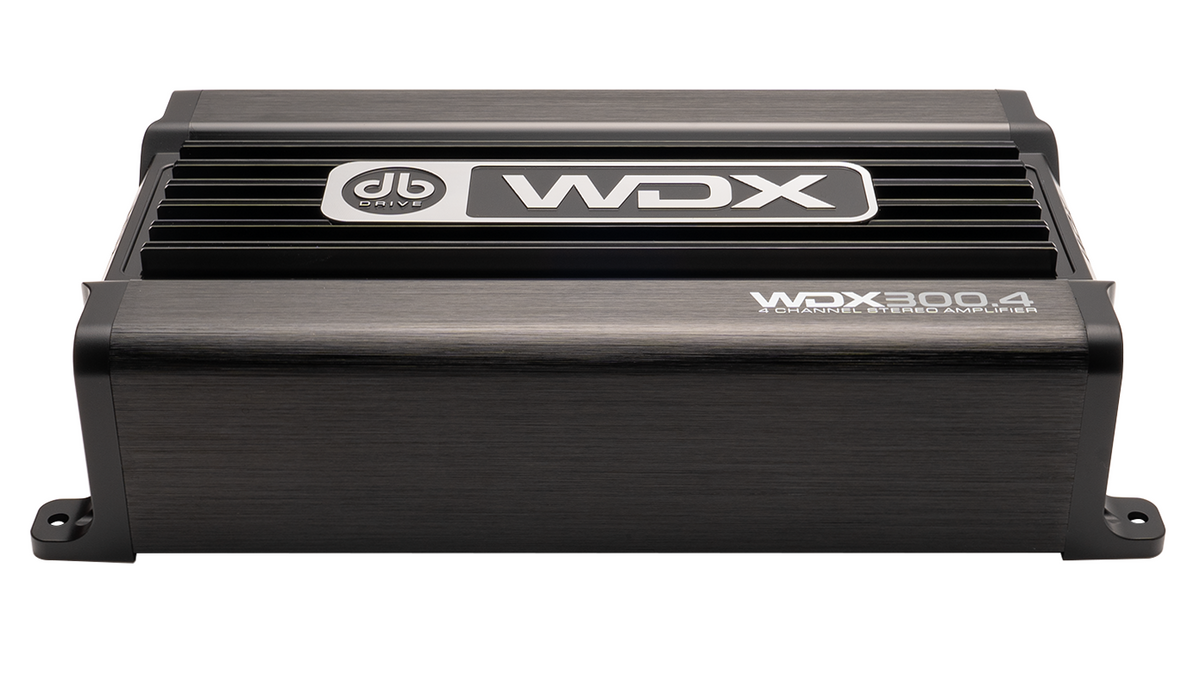

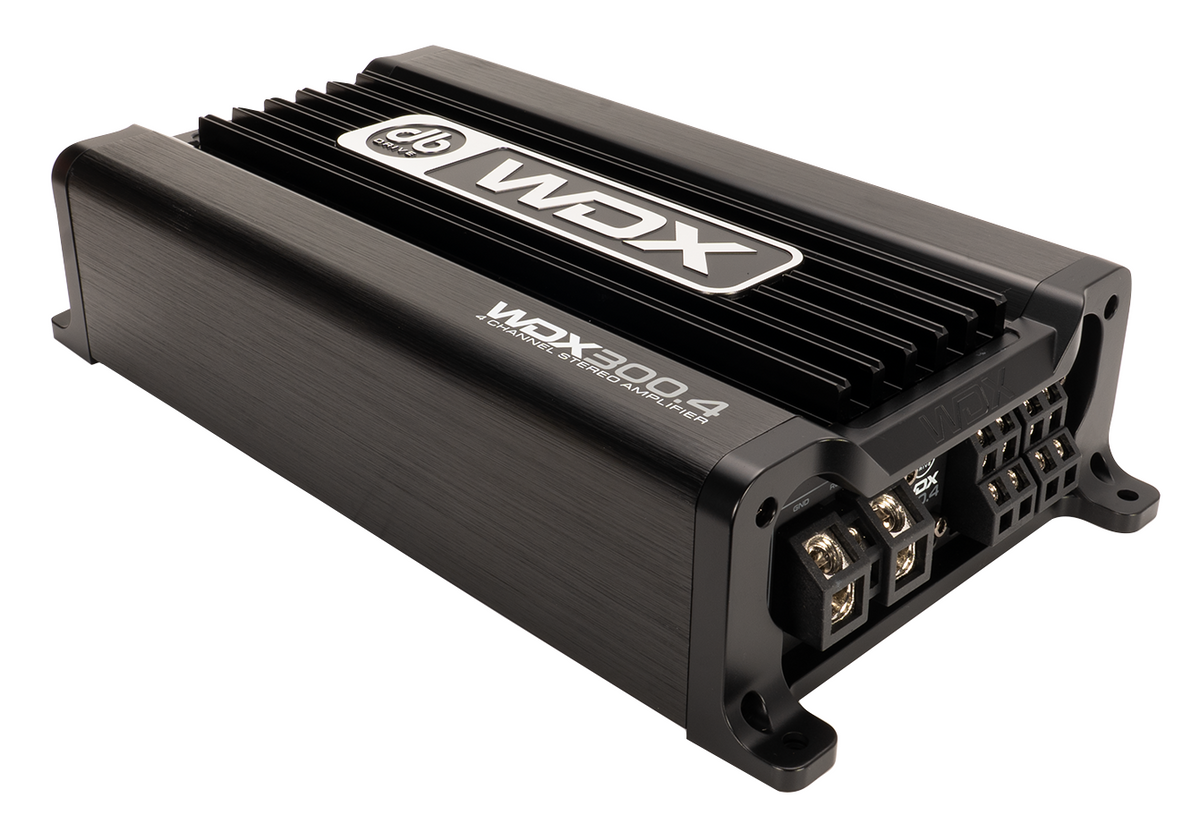

DB Drive WDX300.4 : 4-Channel Class D Amplifier

Features

• CLASS “D” CIRCUITRY

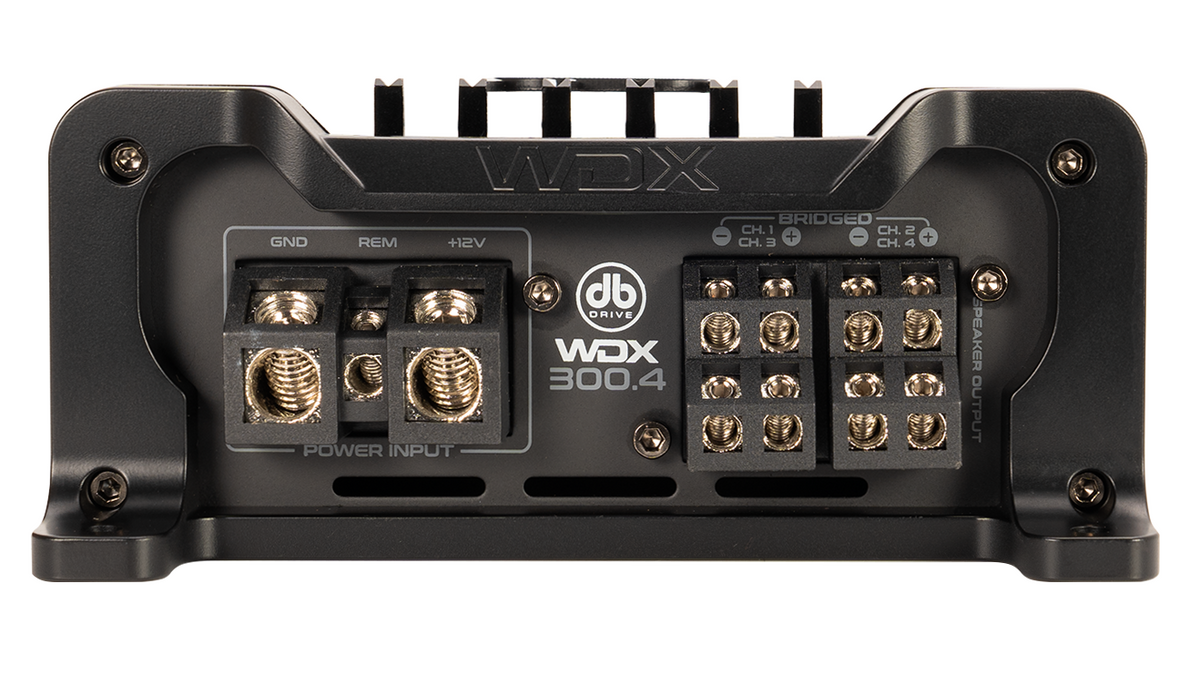

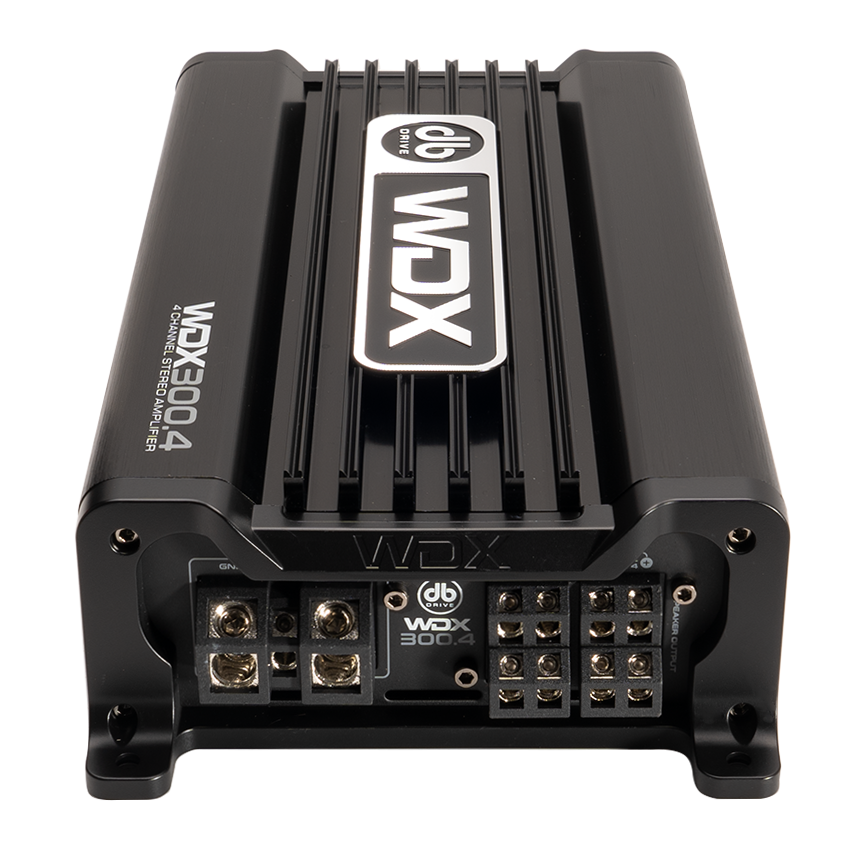

• Direct Connect Speaker Terminals
• 4 Gauge Power Wire Input
• CHM- Collective Heat Management
• ACT – Adaptive Crossover Technology
• SESI – Signal Evaluation Status Indicator
• APC – Audio Protection Circuit

Specifications

Rated Power @14.4 Volts
	4 x 300 Watts @ 4Ω
	4 x 400 Watts @ 2Ω
	2 x 400 Watts @ 4Ω Bridged

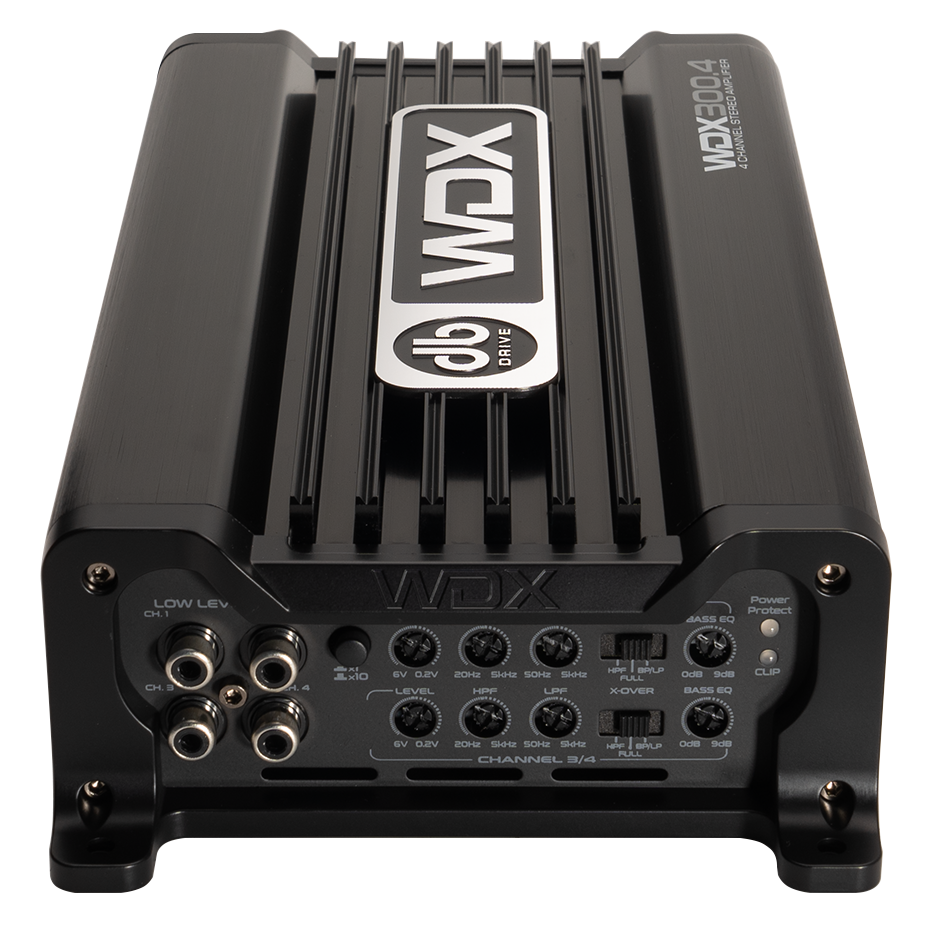

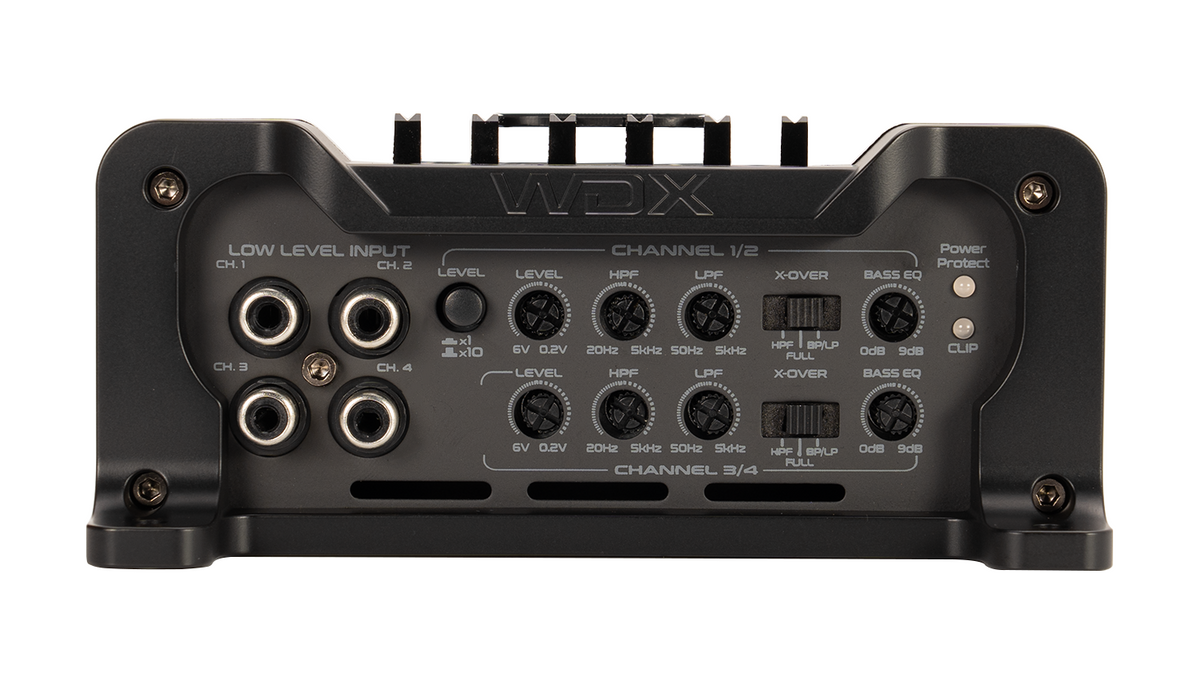

Parameters

Frequency Response	20Hz ~ 22KHz
S/N Ratio	< 105 dB
Low Level Input	6V - 0.2V
Independent Selectable X-Over F/R	HPF / LPF / BP / FULL
Variable High Pass Filter (@ 12dB Slope)	20Hz ~ 5Kz
Variable Low Pass Filter (@ 12dB Slope)	50Hz ~ 5Khz
Bass Equalizer	0dB - 9dB
Working Voltage	12 - 15 Volts

Description

Amplify Your Sound, Amplify Your Life!

Unleash the full potential of your audio system with the DB Drive WDX300.4: 4 Channel Class D Stereo Amplifier. Designed with precision and power in mind, this amplifier offers an impressive 2Ω stereo or 4Ω bridged capability, delivering up to 1600W of raw power. Its direct connect speaker terminals and 4-gauge power wire input ensure seamless connectivity, while the collective heat management and adaptive crossover technology keep your system running smoothly and efficiently. With a signal evaluation status indicator and audio protection circuit, you can trust in the reliability and quality of your sound. Whether you're a car audio enthusiast or a professional installer, the WDX MINI AMPLIFIERS series is your ultimate solution for superior sound performance. Elevate your audio experience with the unmatched power and clarity of the DB Drive WDX300.4.
