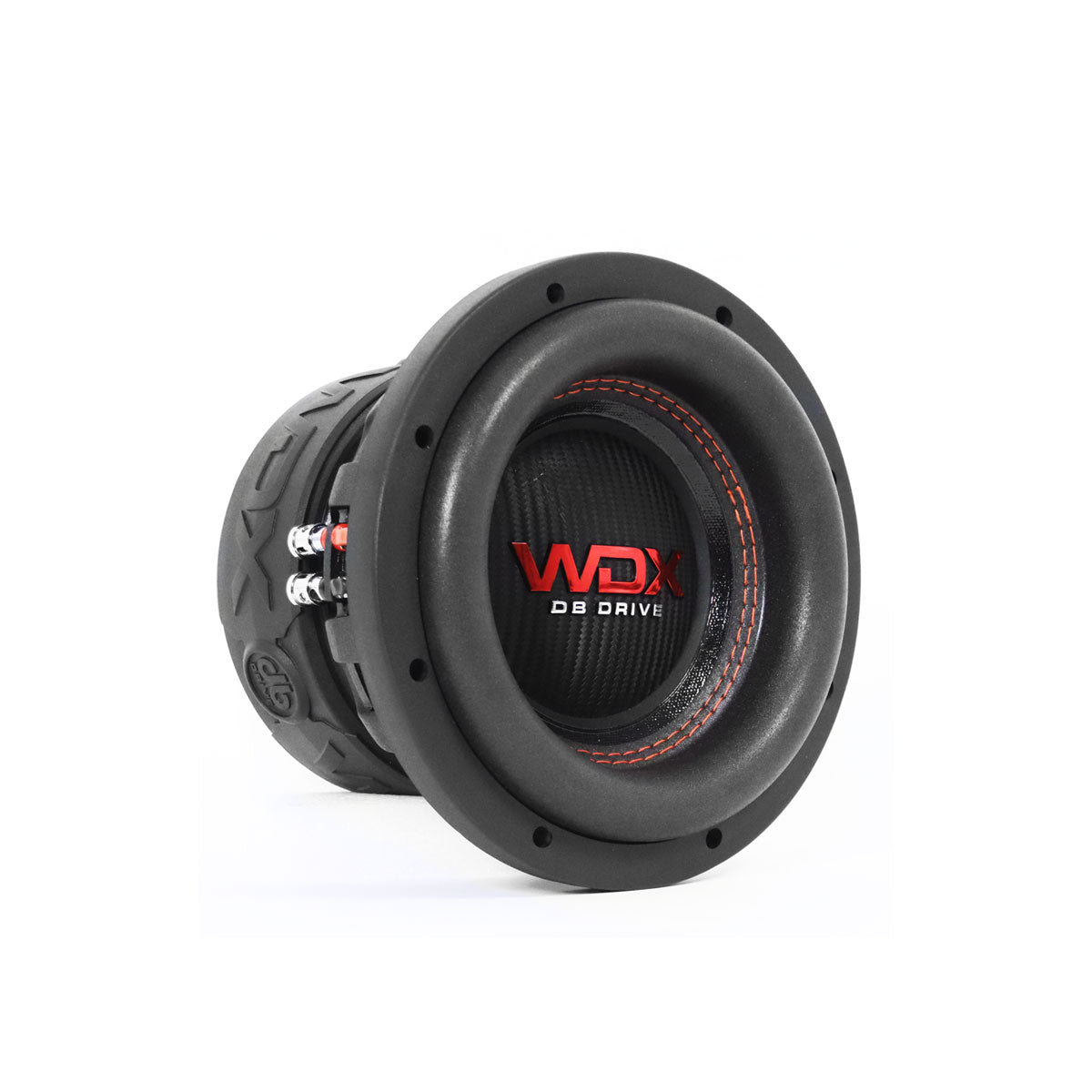

DB Drive WDX6.5G1.4 : 6.5" Dual 4-Ohm Subwoofer
DB Drive WDX6.5G1.4 : 6.5" Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.
DB Drive WDX6.5G1.4 : 6.5" Dual 4-Ohm Subwoofer
DB Drive WDX6.5G1.4 : 6.5" Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Features
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround and die-cast aluminum vented basket allow for maximum excursion, while the protective magnet cover gives the woofer a rugged yet stylish appearance.
1.5" BASV High-Temperature Voice coil
- Non-pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
| Structure | 6.5" (16.51cm) Woofer |
|---|---|
| Dynamic Power Handling | 600 Watts |
| Nominal Power Handling | 300 Watts |
| Impedance | Dual 4Ω Voice Coil |
| PARAMETERS | |
| Resonant Frequency (fs) | 58.94Hz |
| D.C. Voice Coil Resistance (Re) | 3.2 x 3.2Ω |
| Mechanical Quality Factor (Qms) | 4.065 |
| Electrical Quality Factor (Qes) | 0.823 |
| Total Quality Factor (Qts) | 0.684 |
| Equivalent Air Volume to Cms (Vas) | 2.749 L |
| Mass of Diaphragm/Coil (Mms) | 77.157 g |
| Force Factor (Bl) | 7.453 |
| Sound Pressure Level (SPL) | 80.2 dB |
Description
Designed for true bass enthusiasts, the WDX6.5G2R.4 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) • The WDX6.5G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
Product Manual
Product Manual PDF
