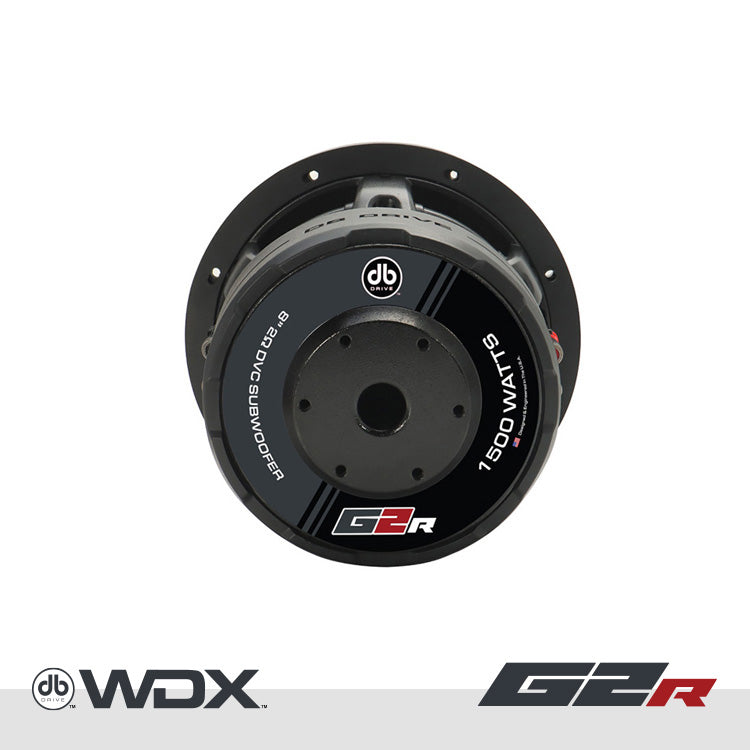

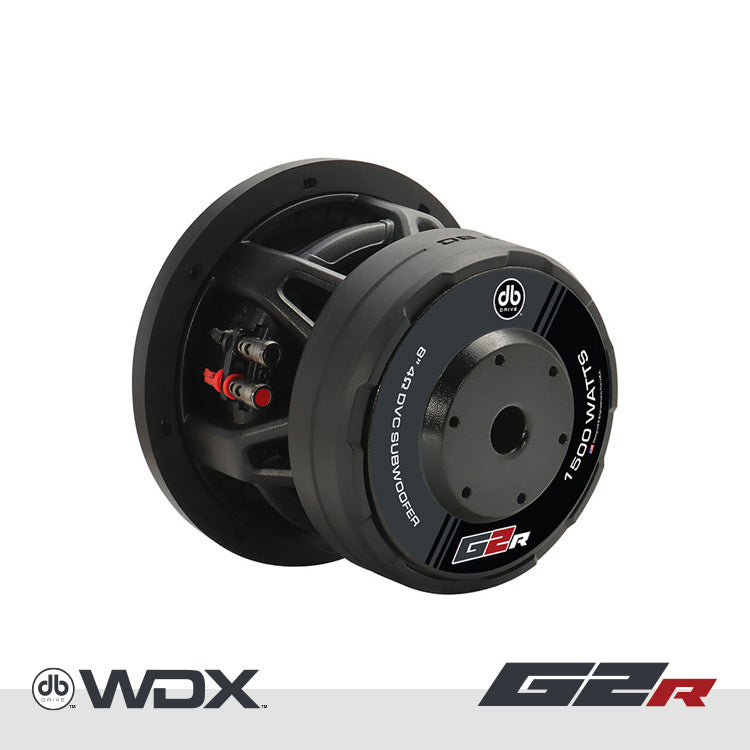

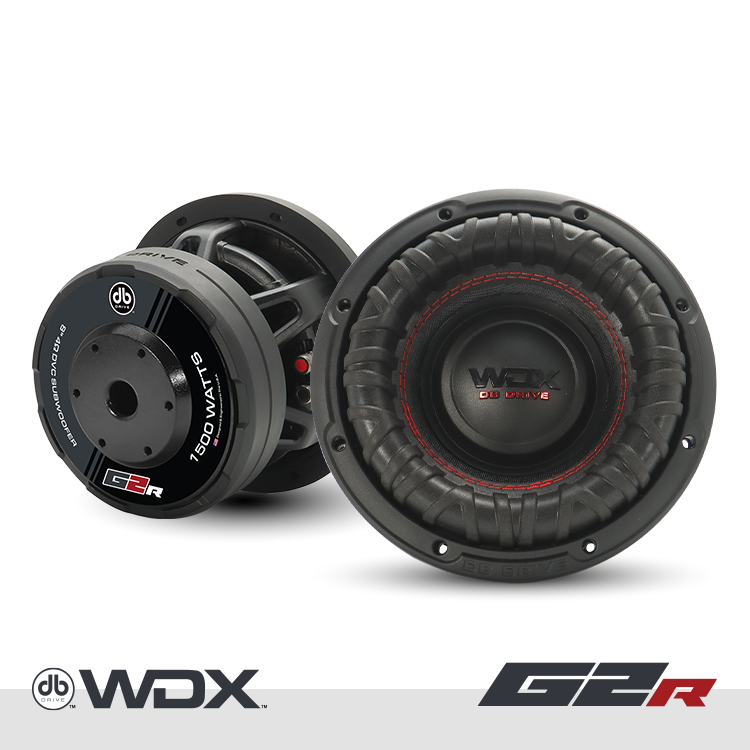

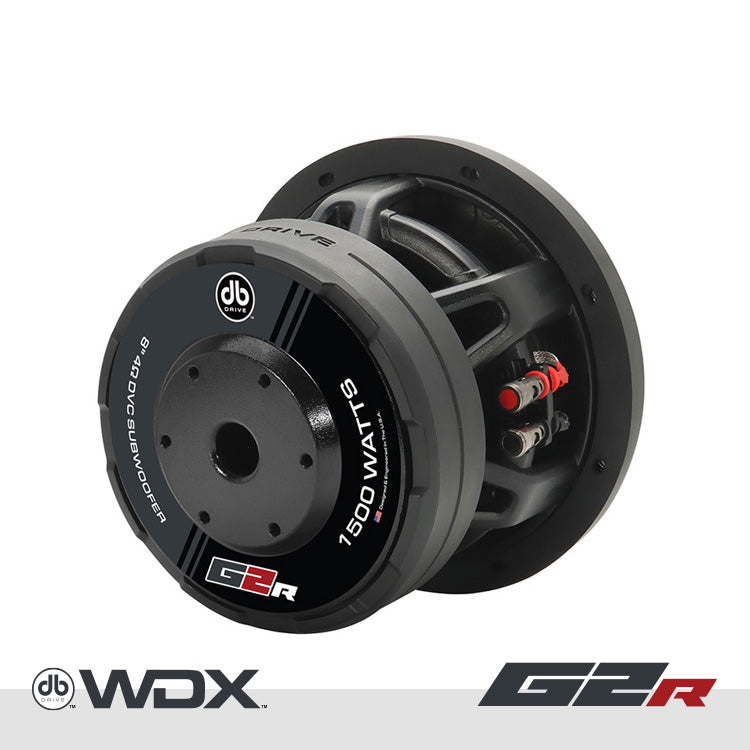

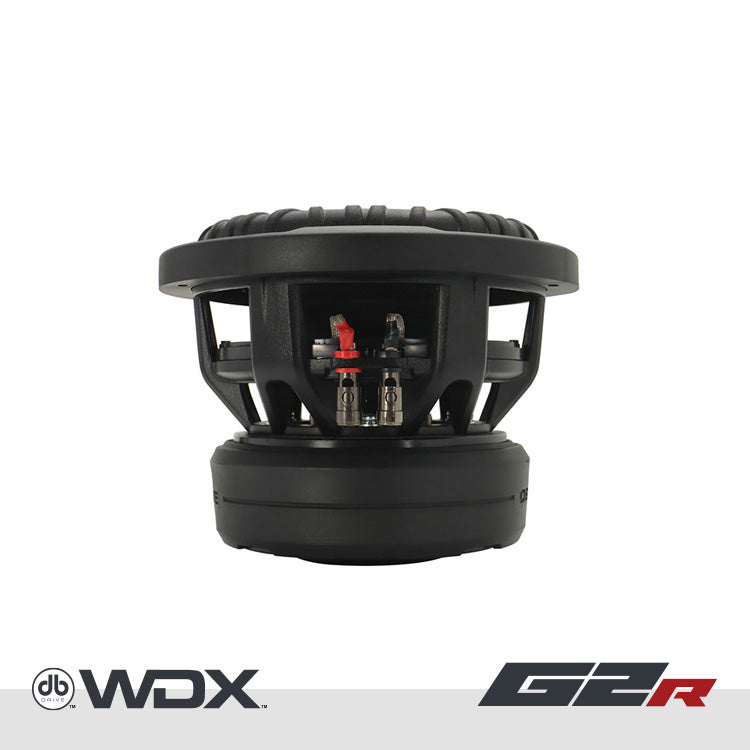

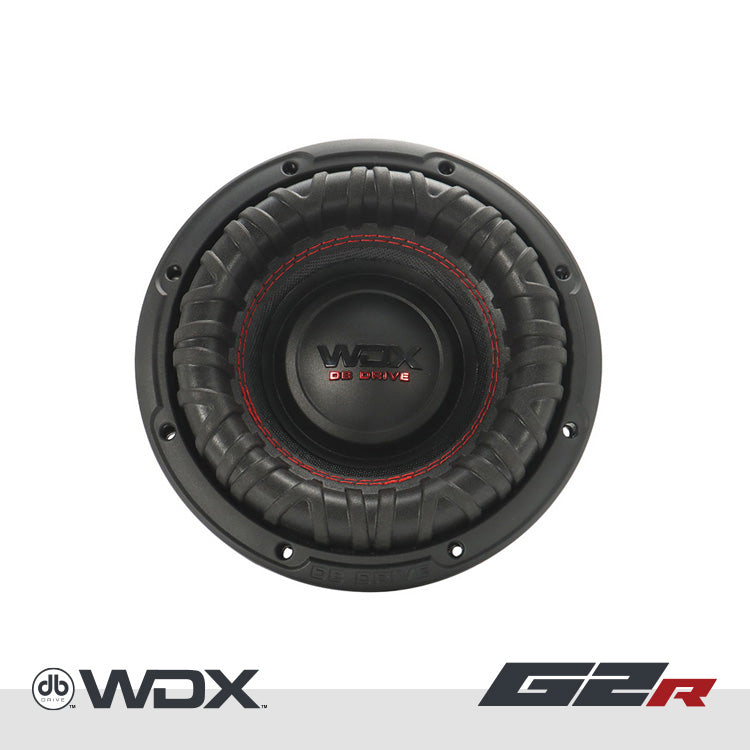

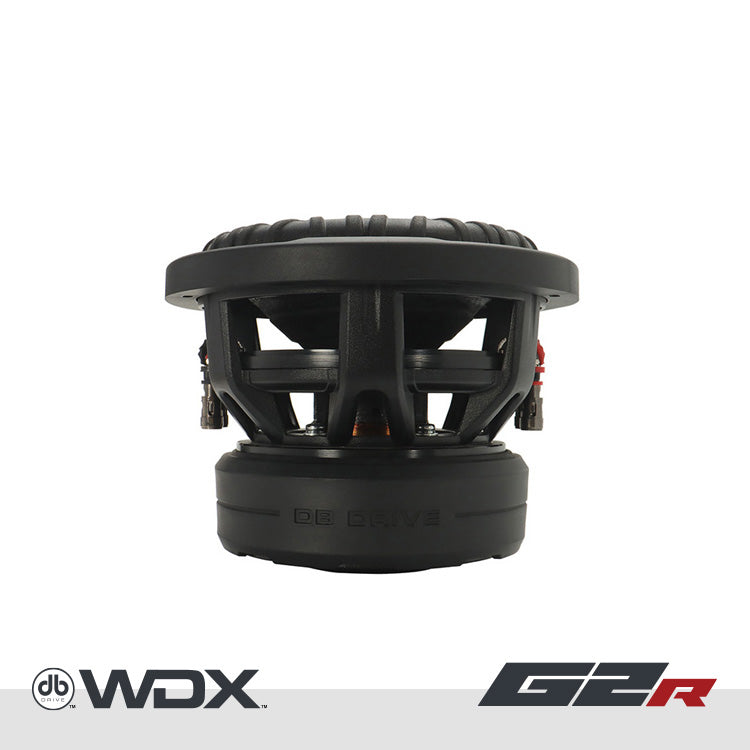

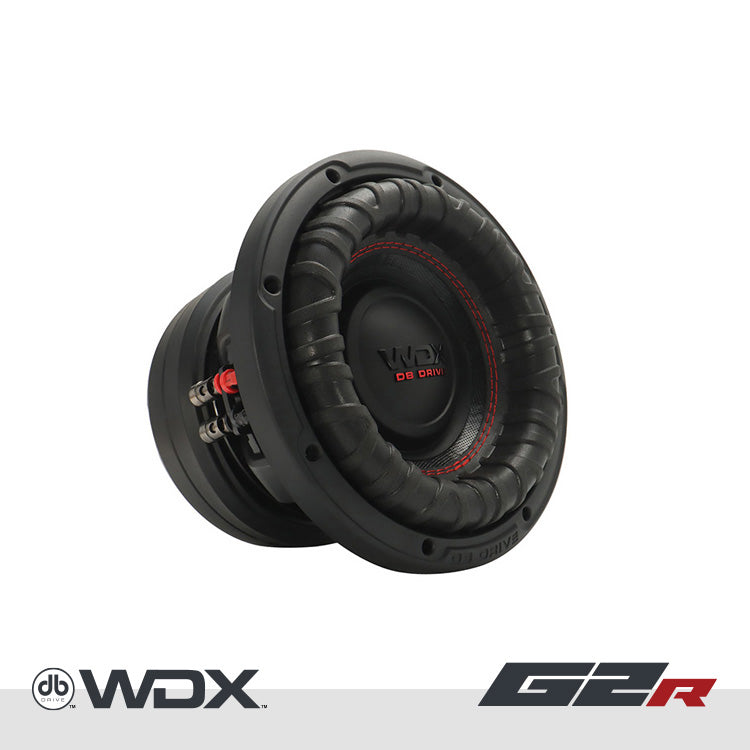

DB Drive WDX8G2R.4 : 8 in. Dual 4-Ohm Subwoofer
DB Drive WDX8G2R.4 : 8 in. Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Pickup available at Audio Hoggz
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
Please allow 2-3 business days for shipments to process.

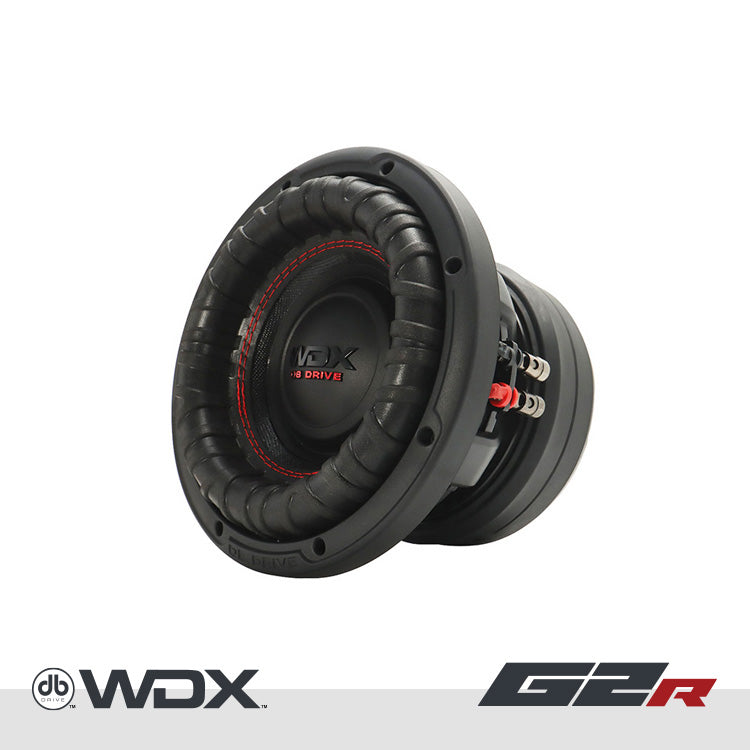

DB Drive WDX8G2R.4 : 8 in. Dual 4-Ohm Subwoofer
DB Drive WDX8G2R.4 : 8 in. Dual 4-Ohm Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Features
- 2.5″ Anodized aluminum high-temperature voice coil
- Non-pressed paper cone
- Double-stitched reinforced foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover
Specifications
| Dynamic Power Handling: 1500 Watts |
| Nominal Power Handling: 750 Watts |
| Impedance: Dual 4Ω Voice Coil |
| Resonant Frequency (fs): 39.479 Hz |
| D.C. Voice Coil Resistance (Re): 2 x 3.2Ω |
| Mechanical Quality Factor (Qms): 3.892 |
| Electrical Quality Factor (Qes): 0.793 |
| Total Quality Factor (Qts): 0.659 |
| Equivalent Air Volume (Vas): 7.051 L |
| Mechanical Compliance of Suspension (CMS): 122.833 mm/N |
| Mass of Diaphragm/Coil (Mms): 132.307 g |
| Force Factor (BL): 16.277 |
| Sound Pressure Level (SPL): 79.3 dB |
| Dimensions |
| Outside Diameter: 8.78"/ 223 mm |
| Cutout Diameter: 7.36"/ 187.5 mm |
| Mounting Depth: 5.55"/ 141 mm |
Description
Designed for true bass enthusiasts, the WDX8G2R.4 subwoofers offer unmatched power and precision. • Featuring a custom mounting gasket for a perfect seal, eliminating rear-canceling waves for pure bass. • All-new dust caps and a custom-tooled aluminum basket provide durability, rigidity, and optimal heat dissipation. • The custom ribbed surround and High Excursion motor with Y35 ferrite magnets and high-temperature voice coils deliver deep, distortion-free bass. • Built for Bass: Power handling up to 1500 watts dynamic (750 watts nominal) • The WDX8G2R.4 sets a new standard for earth-shaking bass. Ready to feel the difference?
Product Manual
Product Manual PDF
