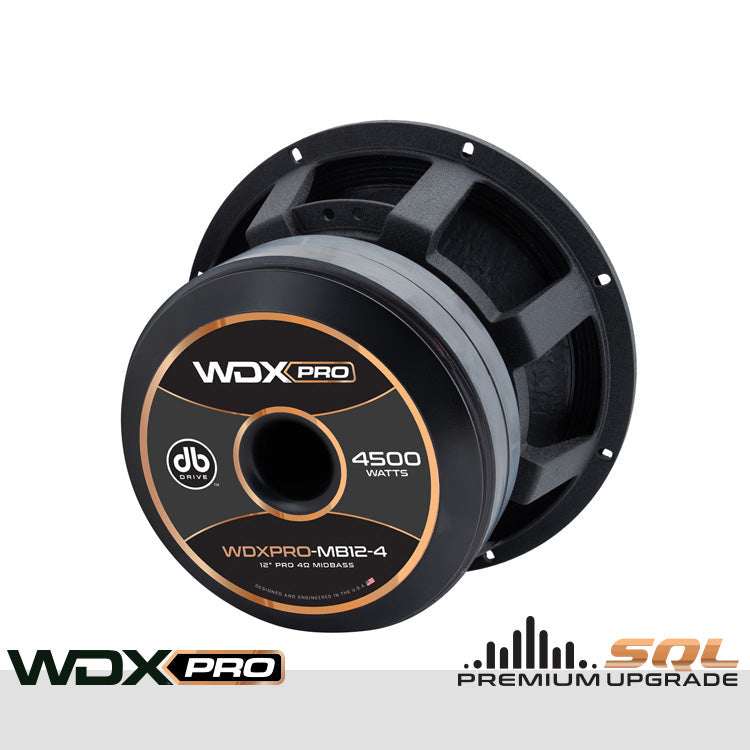

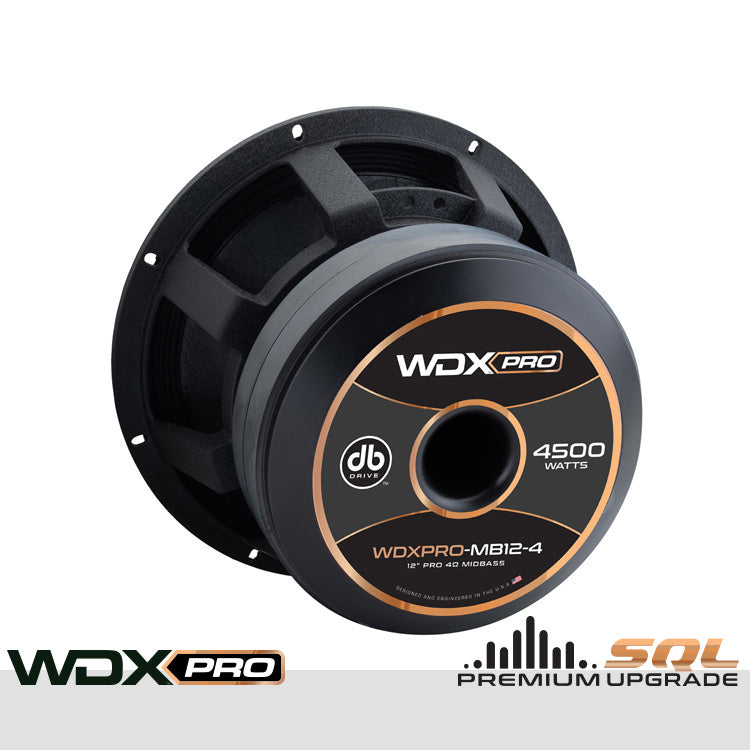

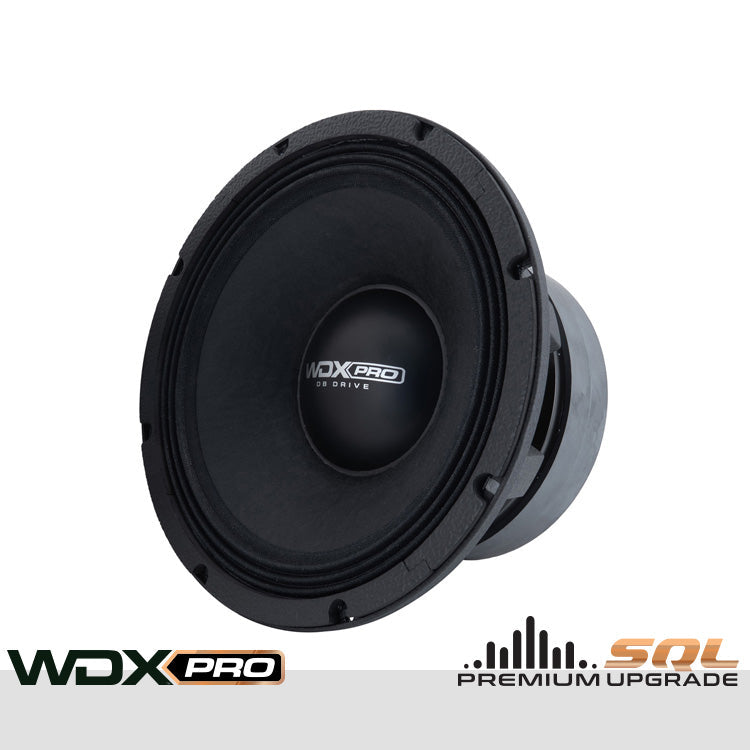

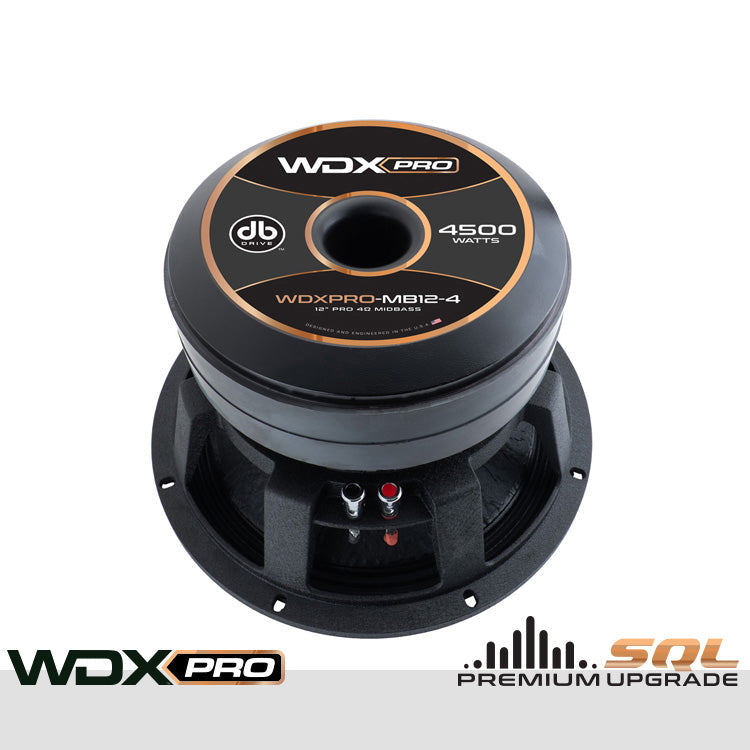

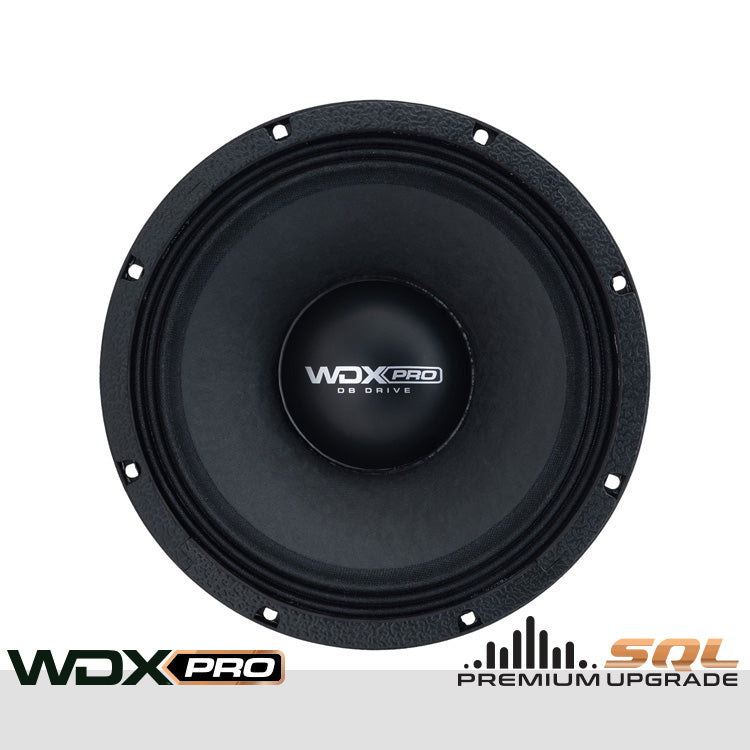

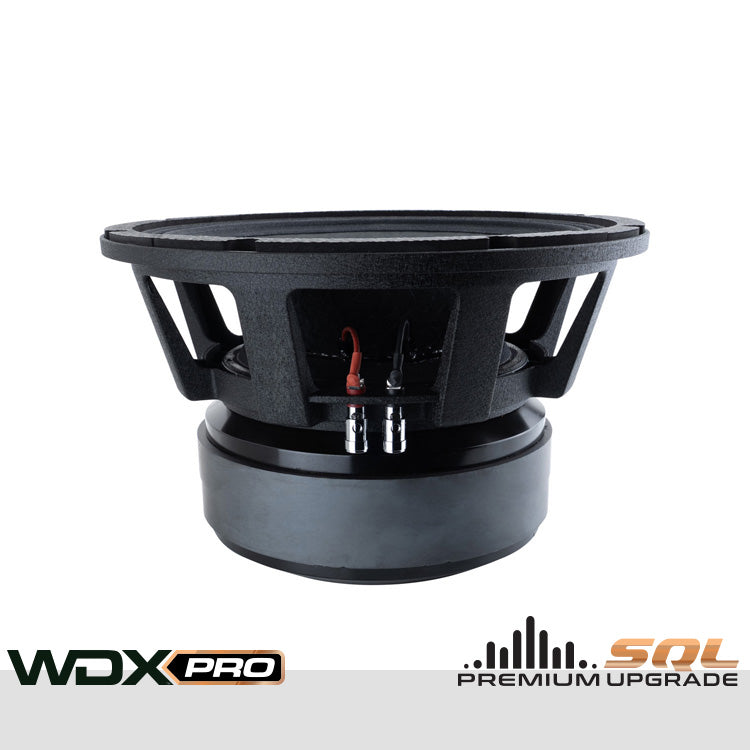

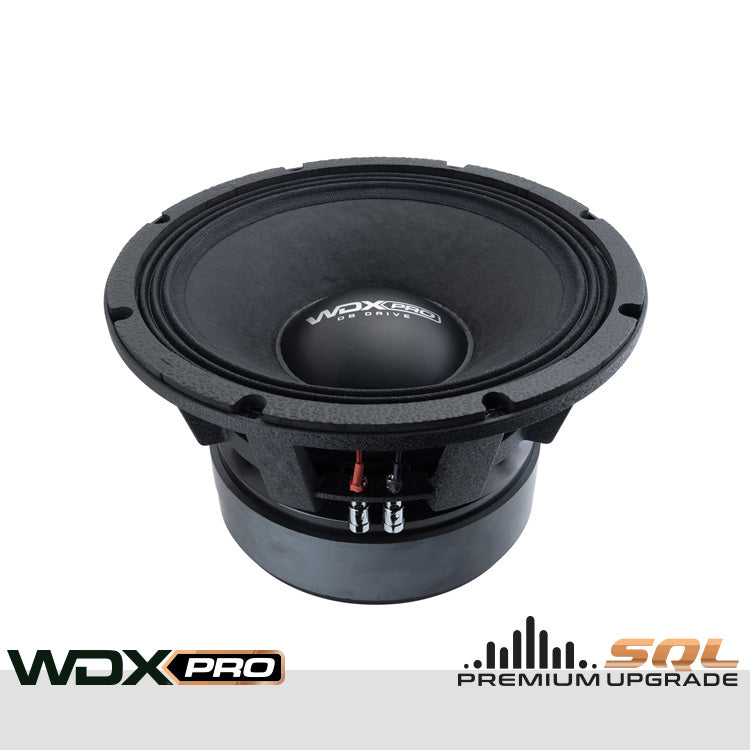

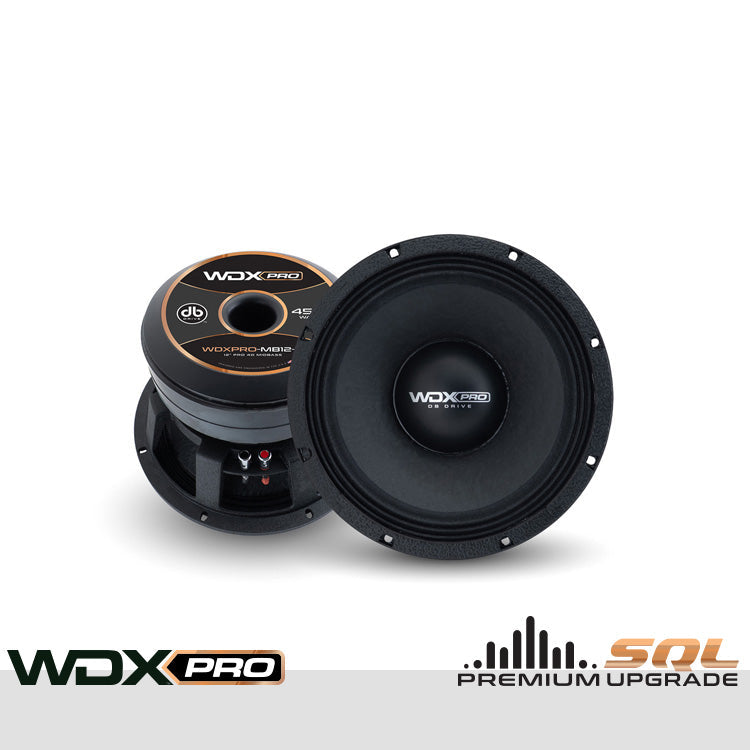

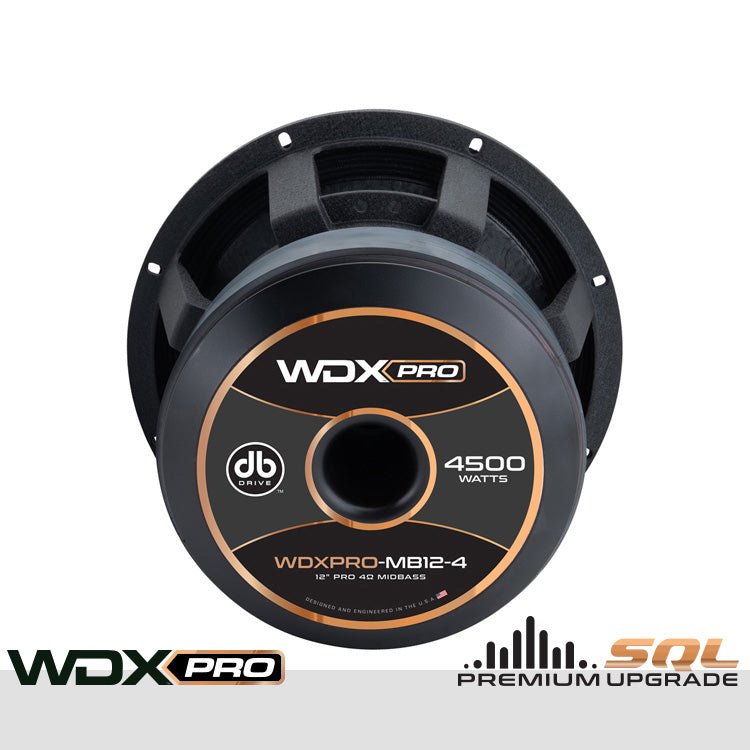

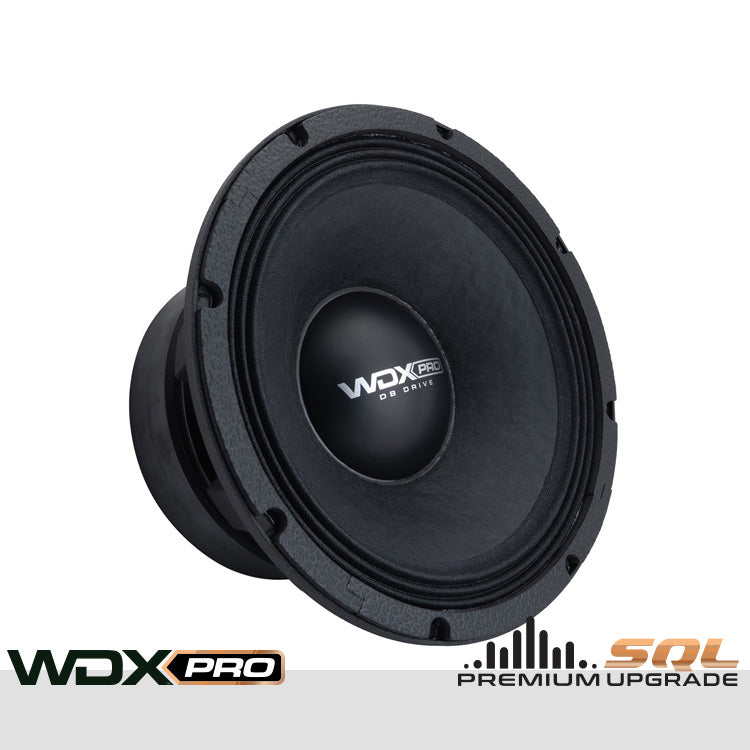

DB Drive WDXPRO-MB12-4 : 12" PRO Series Midbass

Features

• 4.0" High Temperature Voice Coil
• High Strength Ferrite Oxide magnet
• Treated Paper Cone with Cloth Surround

• Extreme Output Capability

• Die-Cast Aluminum

• EVA Mounting gasket

• Compression Speaker terminals

Specifications

• Dynamic Power Handling: 4500 Watts

• Nominal Power Handling: 3000 Watts

• Impedance: 4Ω Voice Coil

• Resonant Frequency (fs):  64.7 Hz

• D.C. Voice Coil Resistance (Re):  4Ω

• Mechanical Quality Factor (Qms): 4.84

• Electrical Quality Factor (Qes): 0.36

• Total Quality Factor (Qts): 0.34

• Equivalent Air Volume to Cms (Vas): 18.7 L

• Mass of Diaphragm/Coil (Mms): 118.4 g

• Force Factor (BL): 19.3

• Sound Pressure Level (SPL):  93.3 dB

Dimensions

Outside Diameter: 12.32"/ 313 mm
Cutout Diameter: 11.15"/ 283.12 mm
Mounting Depth: 7.07"/ 179.55 mm

Description

The WDXPRO-MB12-4 is a 12-inch midbass speaker engineered for extreme high-output car audio systems. It features a 4.0" high-temperature voice coil with a shorting ring, paired with a ferrite oxide magnet for superior power handling. The treated paper cone and cloth surround are optimized to deliver precise midbass frequency response and exceptional output performance. With a dynamic power handling of 4500 watts and a nominal power rating of 3000 watts, this speaker is built for unmatched performance and durability.
