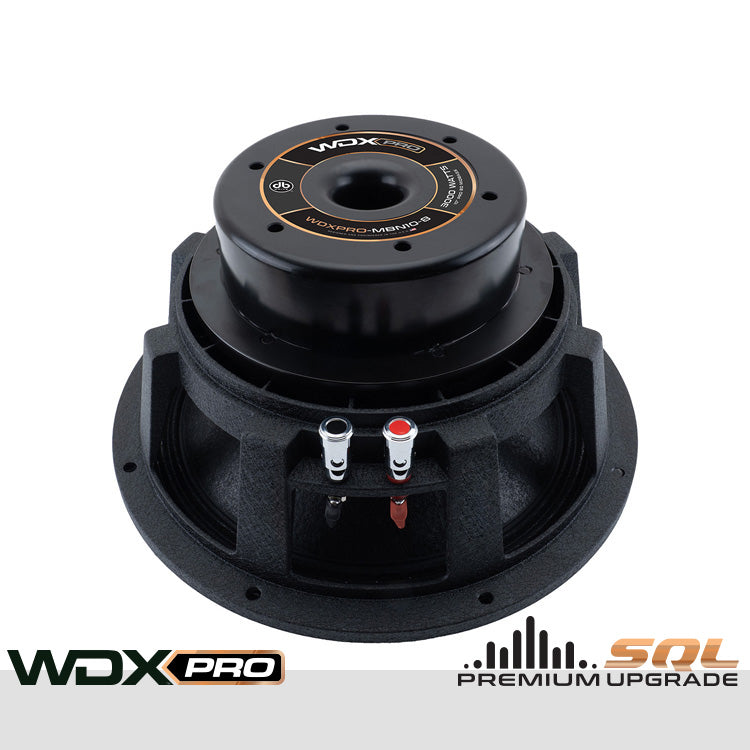

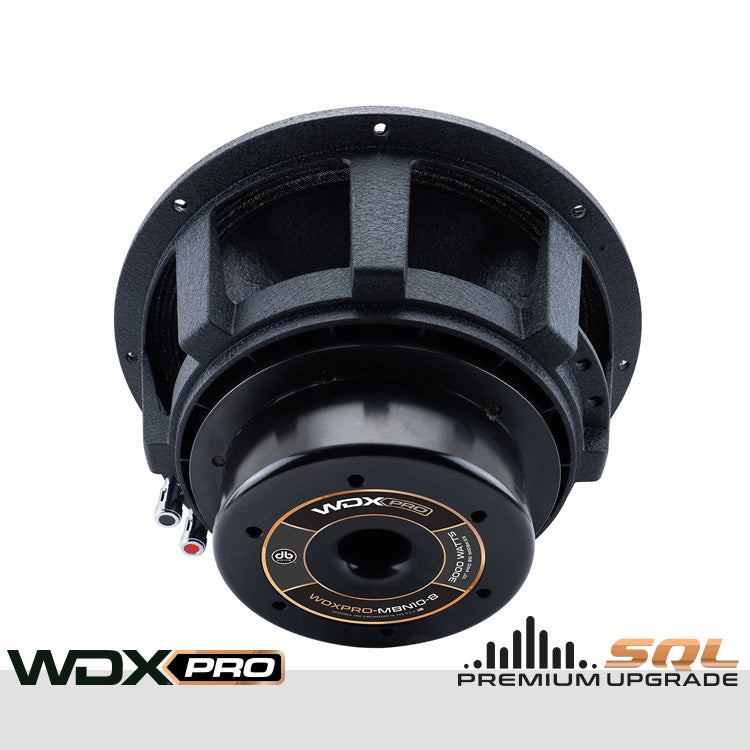

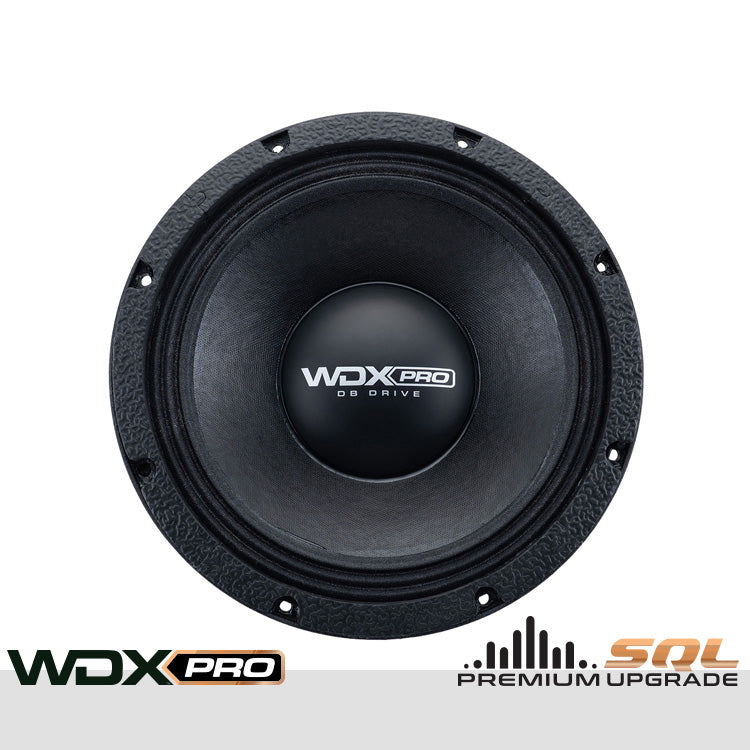

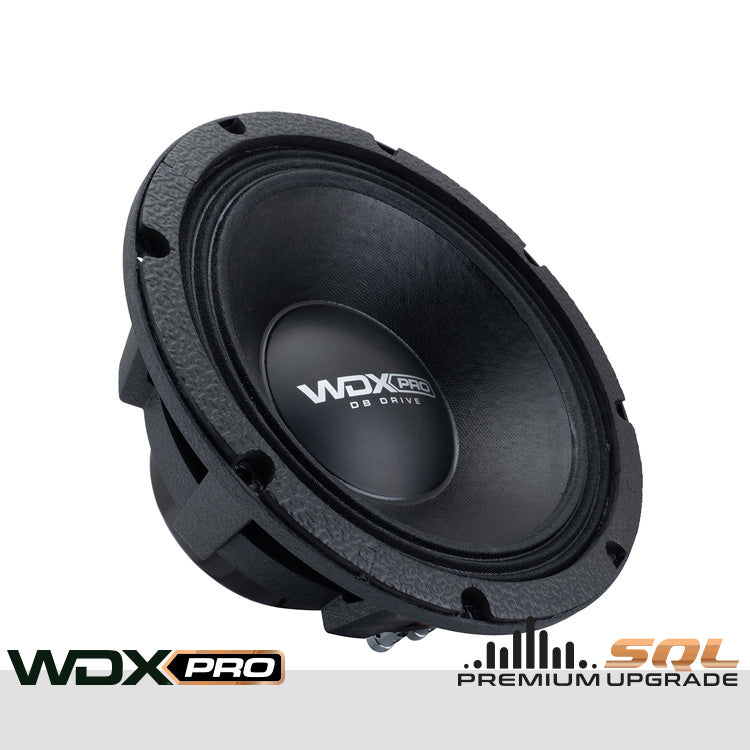

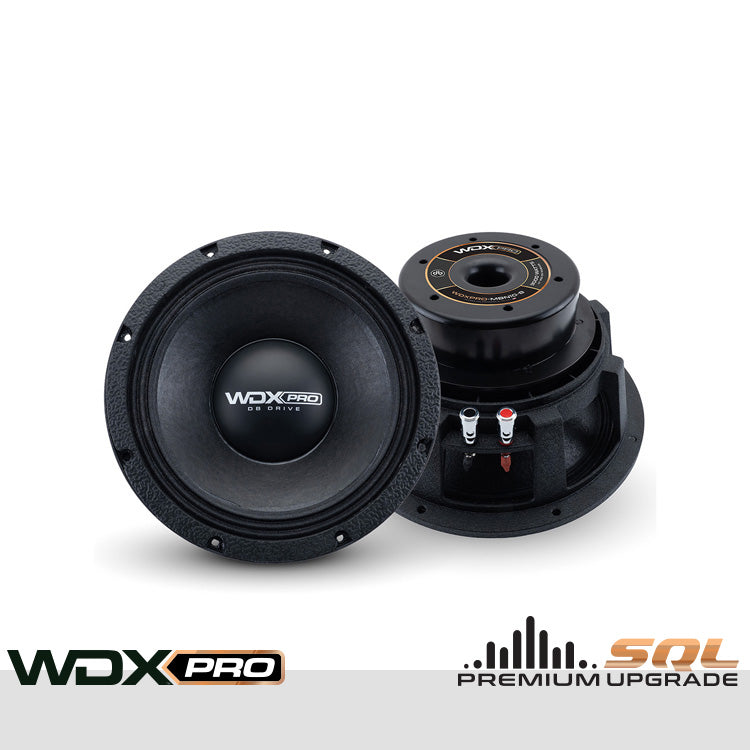

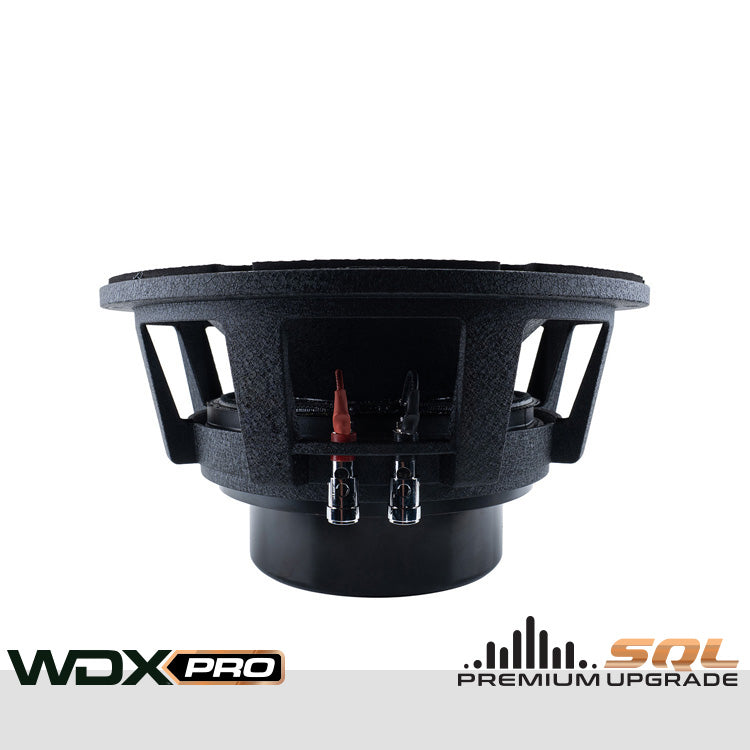

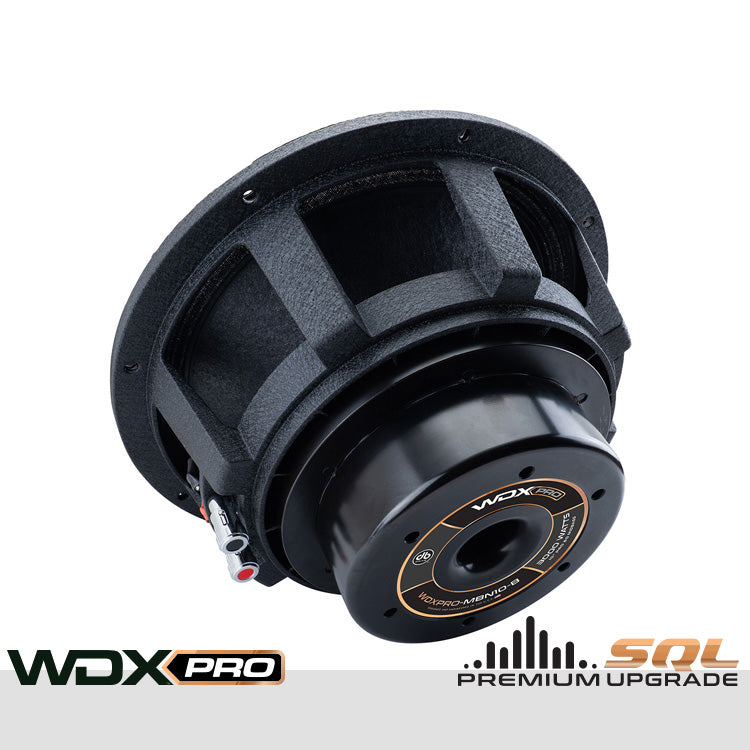

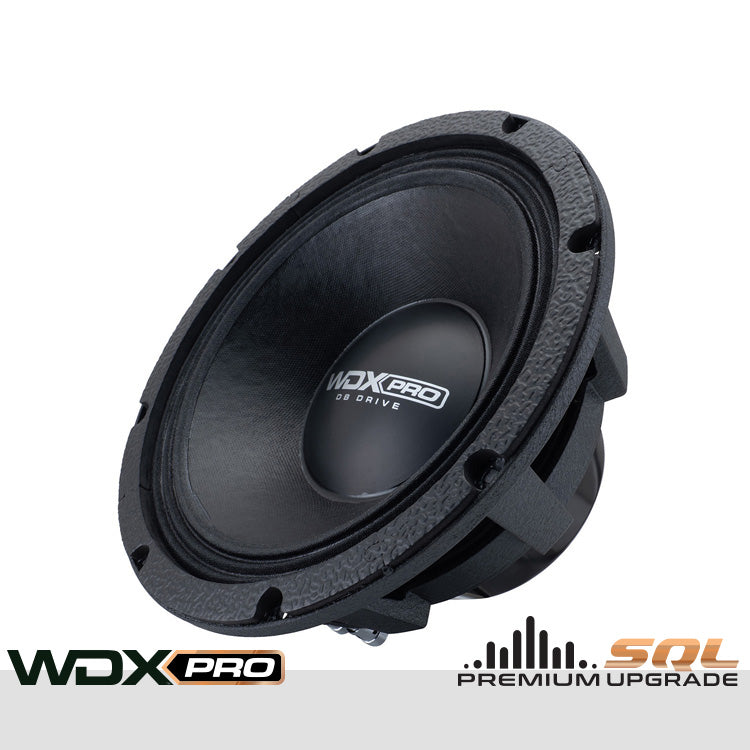

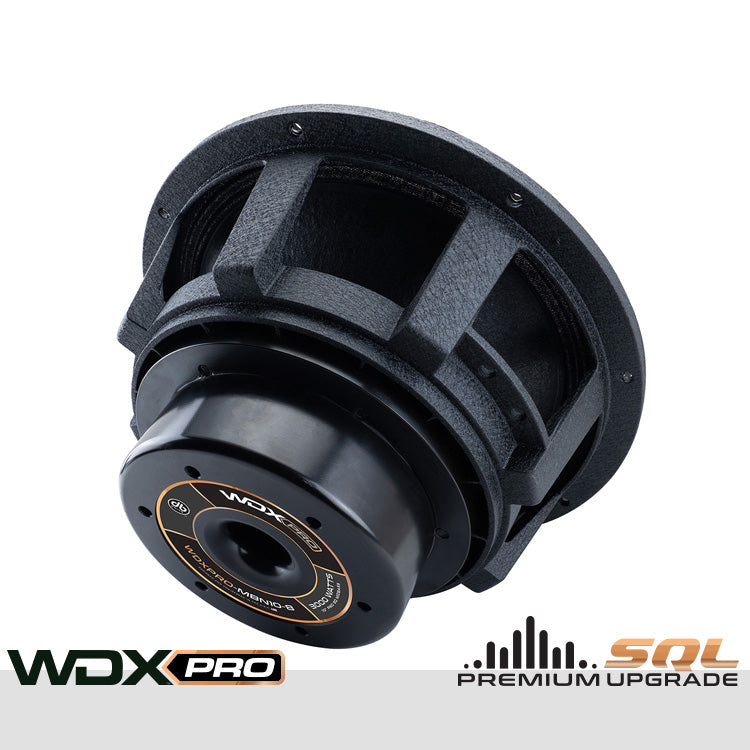

DB Drive WDXPRO-MBN10-8 : 10" PRO Series NEO Midbass (8-Ohm)

Features

• 3.0" High-Temperature Voice Coil with Shorting Ring

• Neodymium magnet for higher efficiency

• Treated Paper Cone with Cloth Surround

• Extreme Output Capability

• Die-Cast Aluminum Basket

• EVA Mounting gasket

• Compression Speaker terminals

Specifications

• Dynamic Power Handling: 2000 Watts

• Nominal Power Handling: 1000 Watts

• Impedance: 8Ω Voice Coil

• Resonant Frequency (fs): 78.5 Hz

• D.C. Voice Coil Resistance (Re): 8Ω

• Mechanical Quality Factor (Qms): 2.89

• Electrical Quality Factor (Qes): 0.47

• Total Quality Factor (Qts): 0.41

• Equivalent Air Volume to Cms (Vas): 13.0 L

• Mass of Diaphragm/Coil (Mms): 50.2 g

• Force Factor (BL): 16.5

• Sound Pressure Level (SPL): 93.1dB

• Dimensions

• Outside Diameter: 10.46"/ 265.60 mm

• Cutout Diameter: 9.23"/ 234.41 mm

• Mounting Depth: 5"/ 127 mm

Description

The WDXPRO-MBN10-8 is a 10-inch midbass speaker engineered for extreme high-output car audio systems. It features a 3.0" high-temperature voice coil with a shorting ring, paired with a Neodymium magnet for high efficiency and enhanced power handling . The treated paper cone with a cloth surround is designed to optimize midbass frequency response, delivering exceptional output performance. With a dynamic power handling of 2000 watts and a nominal power rating of 1000 watts, this speaker is built for unmatched performance and durability.
