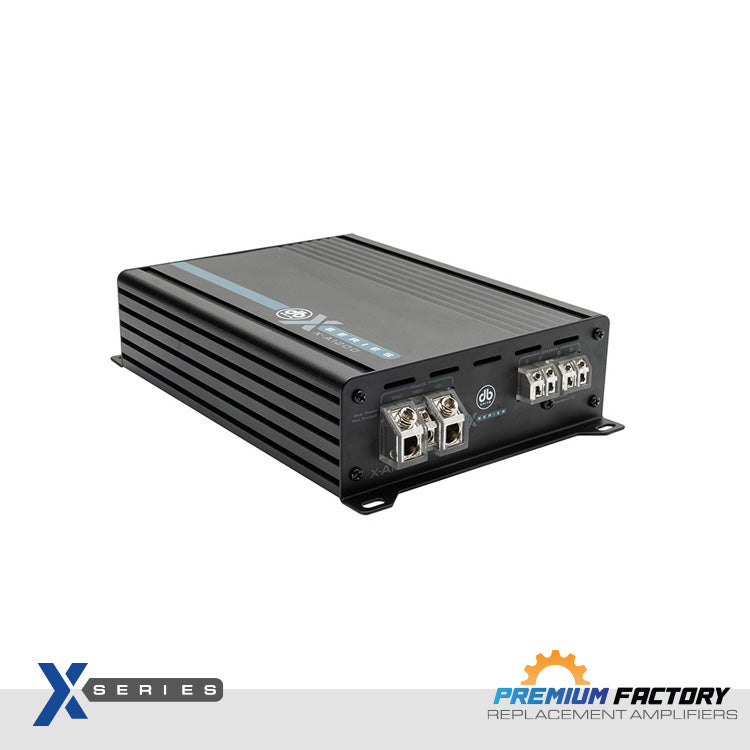

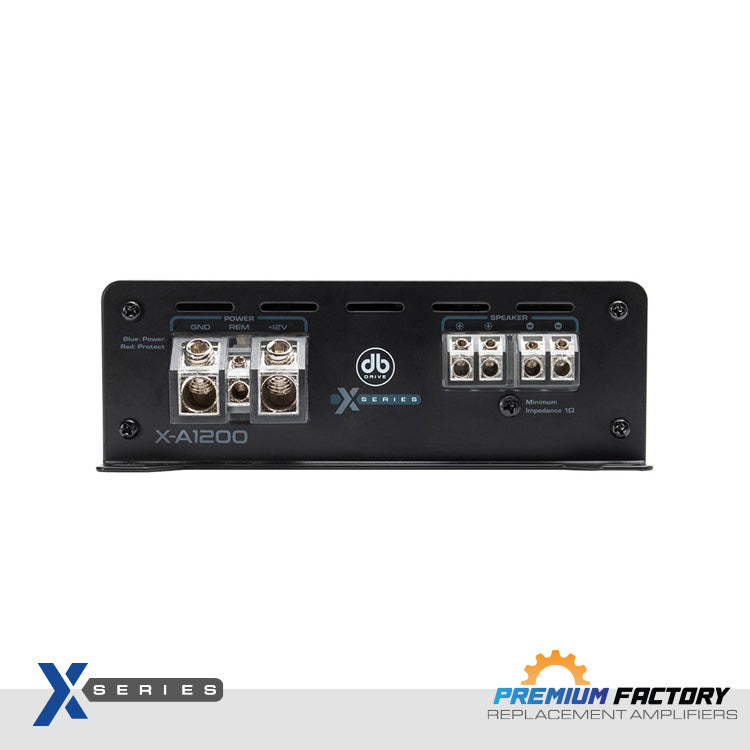

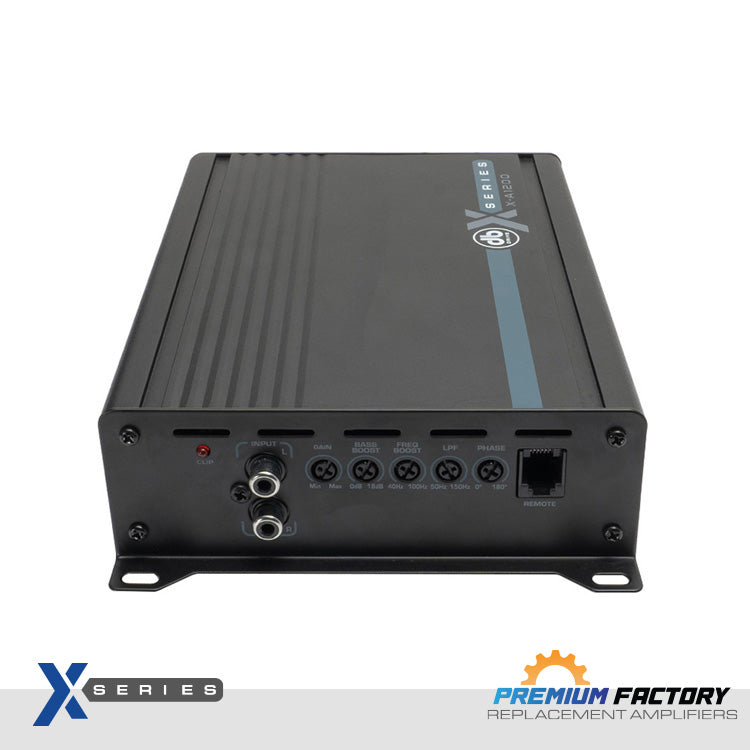

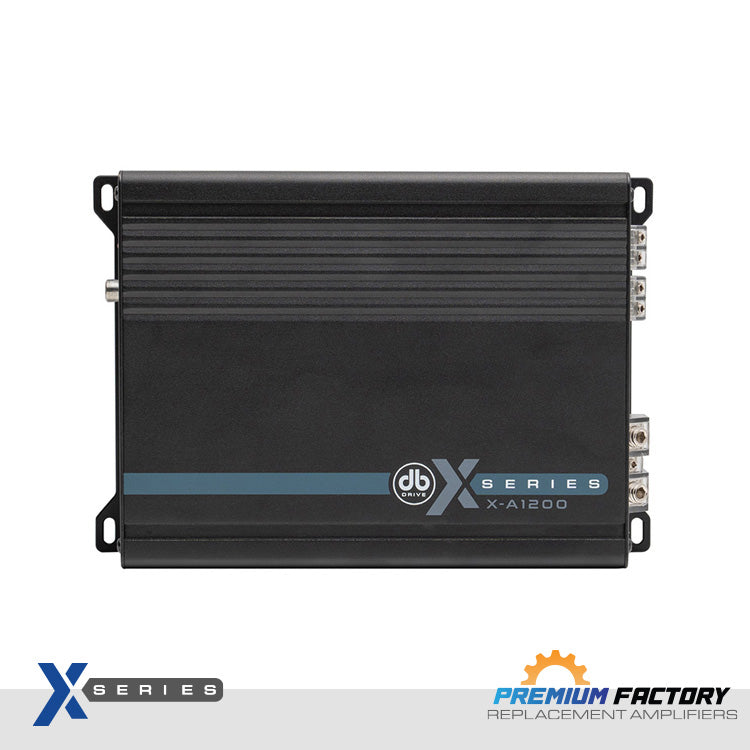

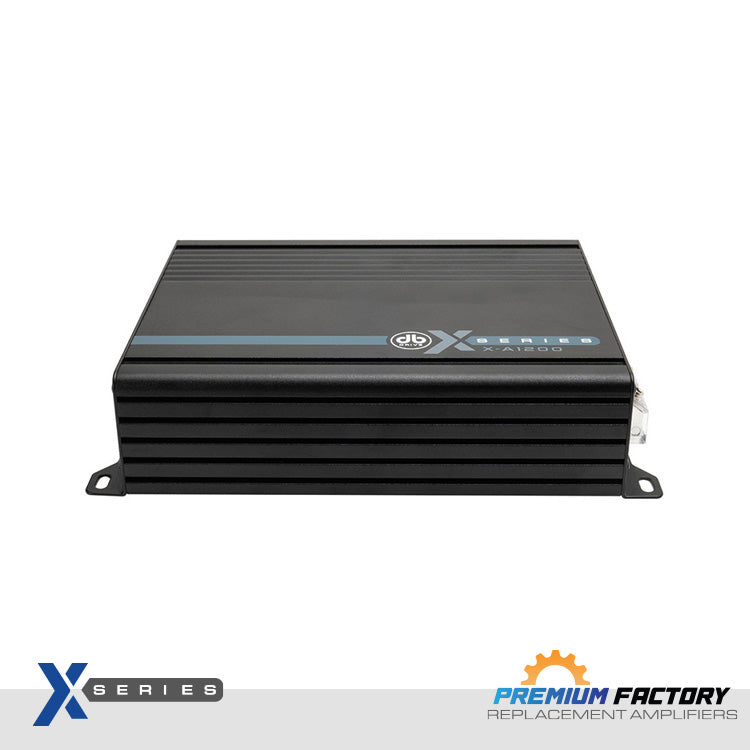

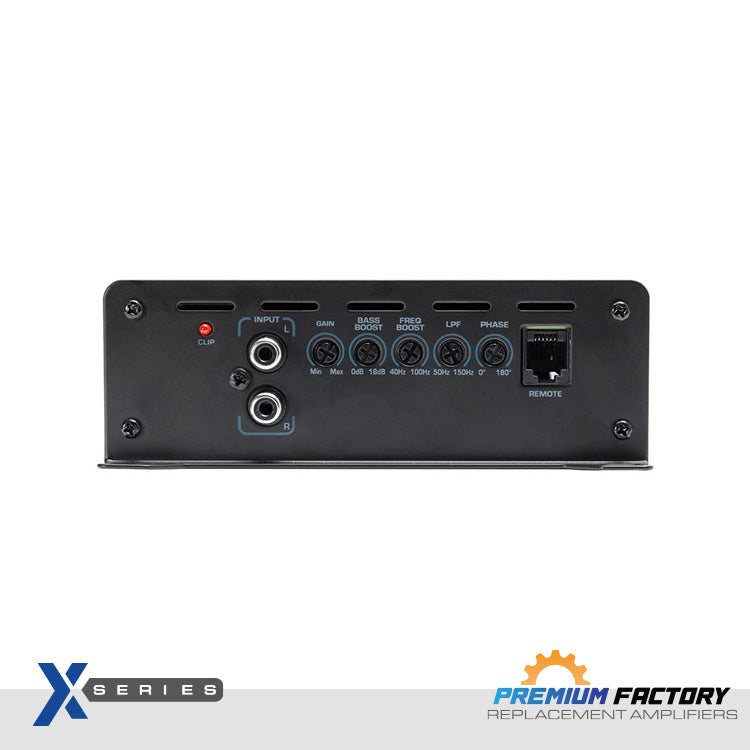

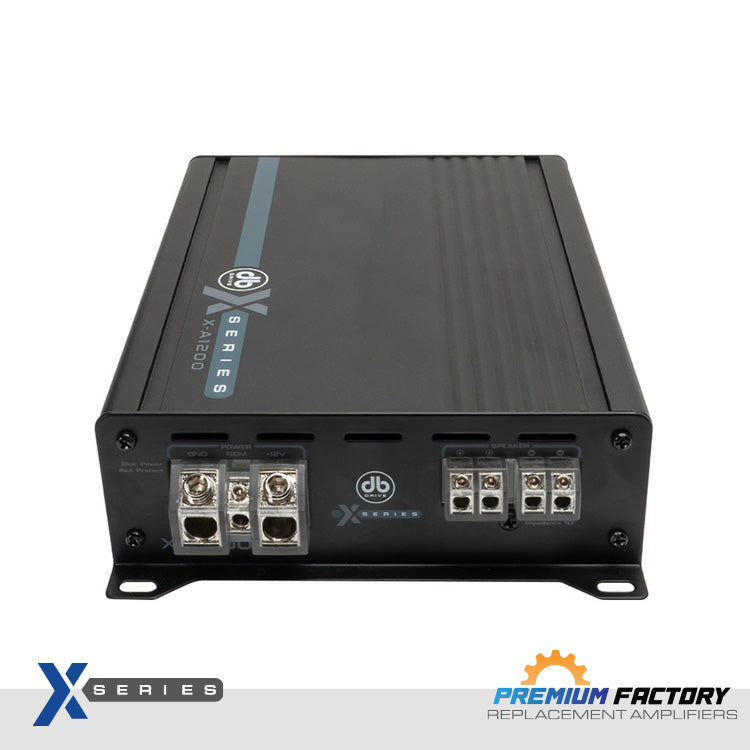

DB Drive X-A1200 : Mono Class D Amplifier

Features

• Class D Technology

• Direct Connect Speaker Terminals

• Illuminated Large Gauge Power Wire Inputs

• PWM Mosfet Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

• Bass Remote:  Included

Specifications

• Dynamic Power output: 1200 Watts

• Power Output: 1 x 600 Watts @ 1 Ω

• Power Output: 1 x 300 Watts @ 2 Ω

• Power Output: 1 x 150 Watts @ 4 Ω

• Frequency Response: 20Hz-150Hz

• Input Sensitivity: 0.2V - 6V

• Input Impedance: 10K

• Signal to Noise Ratio: 90dB

• Remote Gain Level Control: 0.2-6V

• Bass Boost Frequency: 40Hz -100Hz

• Low Pass Filter: 50Hz-150Hz

• Phase: 0-180

• Variable Bass Boost: 0-18dB

Description

Looking to upgrade your vehicle's bass? The DB DRIVE X-A1200 is the ultimate solution. Designed for both audiophiles and casual listeners, it delivers high-performance low-frequency audio. Key Features: •    Powerful Output: Delivers 600W x 1 at 1 ohm and 300W x 1 at 2 ohms  •    1-Ohm Stable: Effortlessly drives subwoofers for enhanced low-end performance. •    High-Efficiency Circuit: Ideal for modern vehicles with compact electrical systems. •    Adaptive LP Crossover: Fine-tune your subwoofers for optimal sound quality. •    4-Layer PCB: Ensures cleaner, more accurate audio reproduction. •    Compact Design: Easy to install without compromising power or performance. •    Remote dash control: easily adjust the amount of bass you want, right at your fingertips. Transform your car into a concert hall with the X-A1200 and experience sound like never before.

Product Manual

Product Manual PDF
