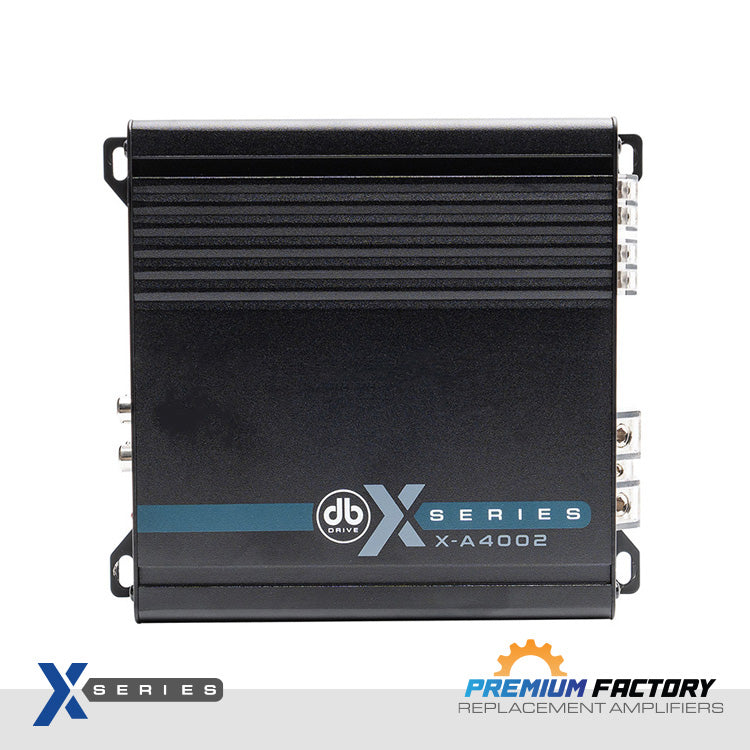

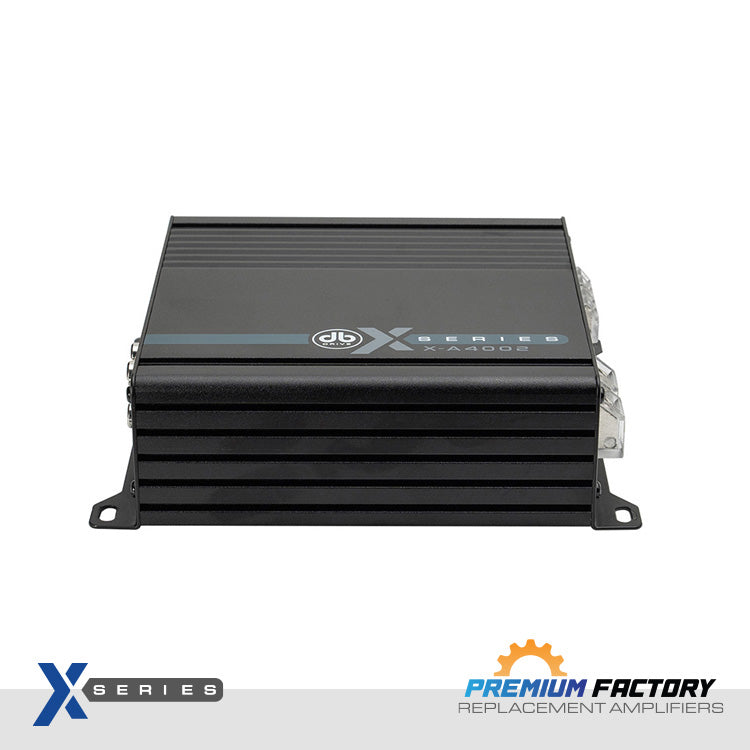

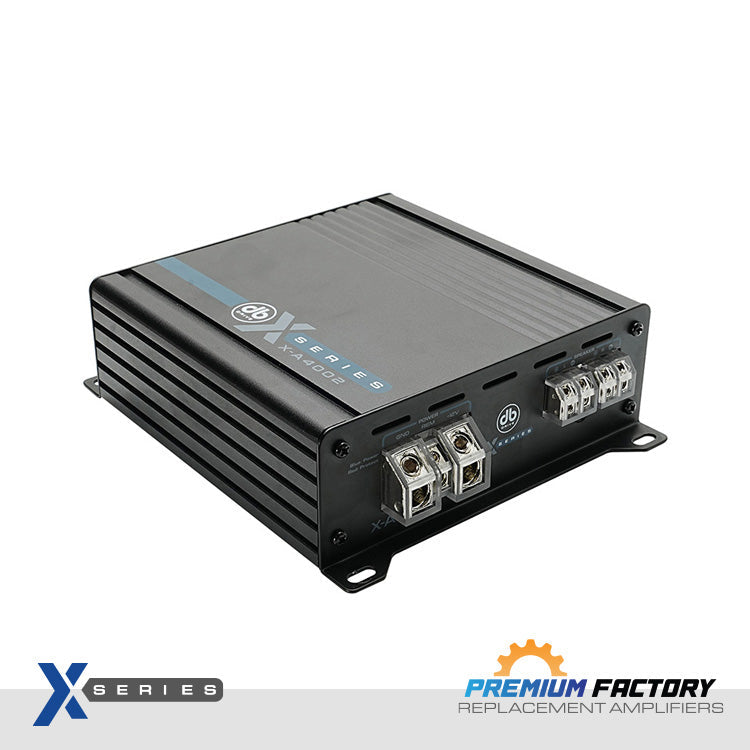

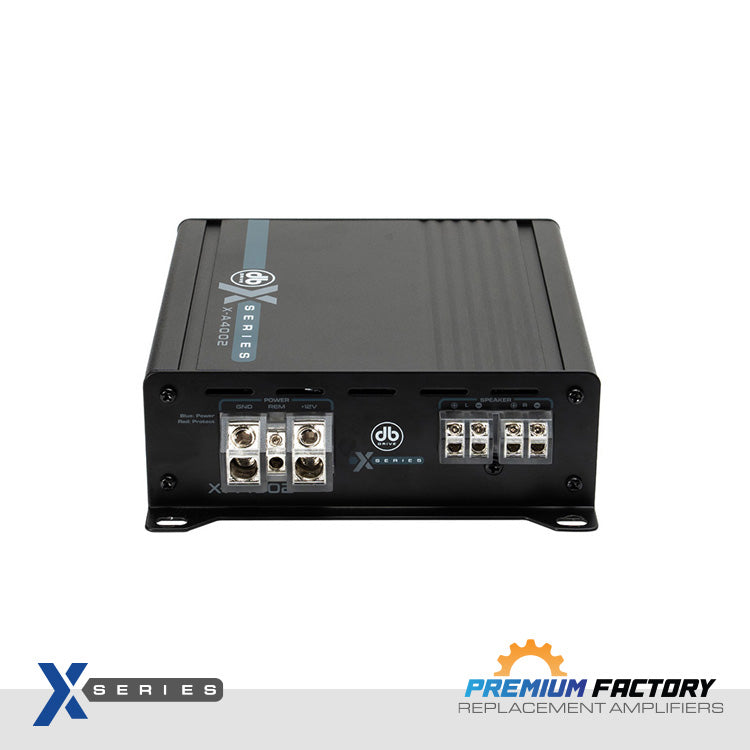

DB Drive X-A4002 : 2-Channel Class D Amplifier

Features

• Class D Technology

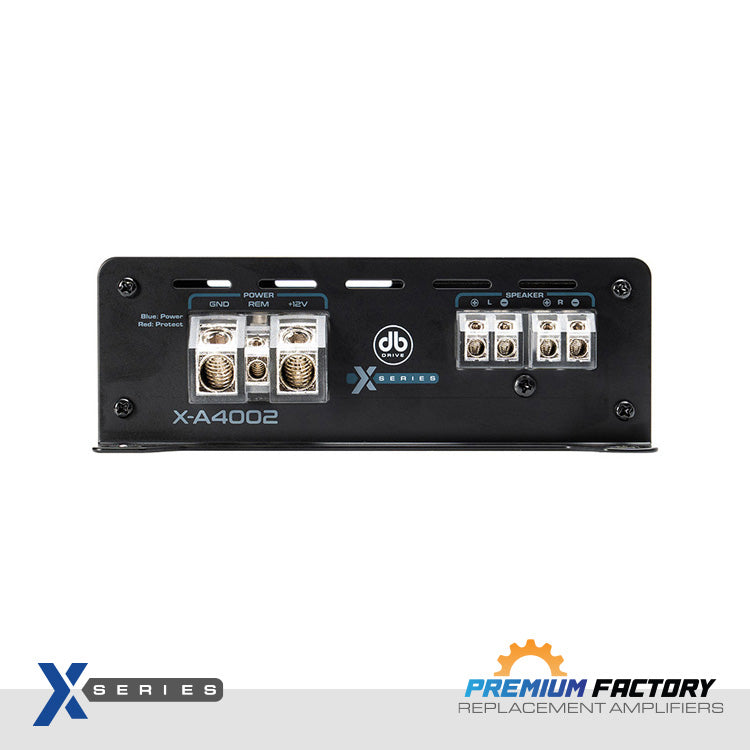

• Direct Connect Speaker Terminals

• Illuminated Large Gauge Power Wire Inputs

• PWM Mosfet Power Supply

• APC - Audio Protection Circuit

• SESI - Signal Evaluation Status indicator

• CHM - Collective Heat Management

Specifications

• Total Dynamic Power output: 300 Watts

• 2 X 75 Watts @ 4 Ω Stereo

• 2 x 150 Watts @ 2 Ω Stereo

• 1 x 300 Watts @ 4 Ω (Bridged)

• Frequency Response: 20Hz - 20KHz

• Input Sensitivity: 0.2V - 6V

• Input Impedance: 10K

• S/N Ratio: 90dB

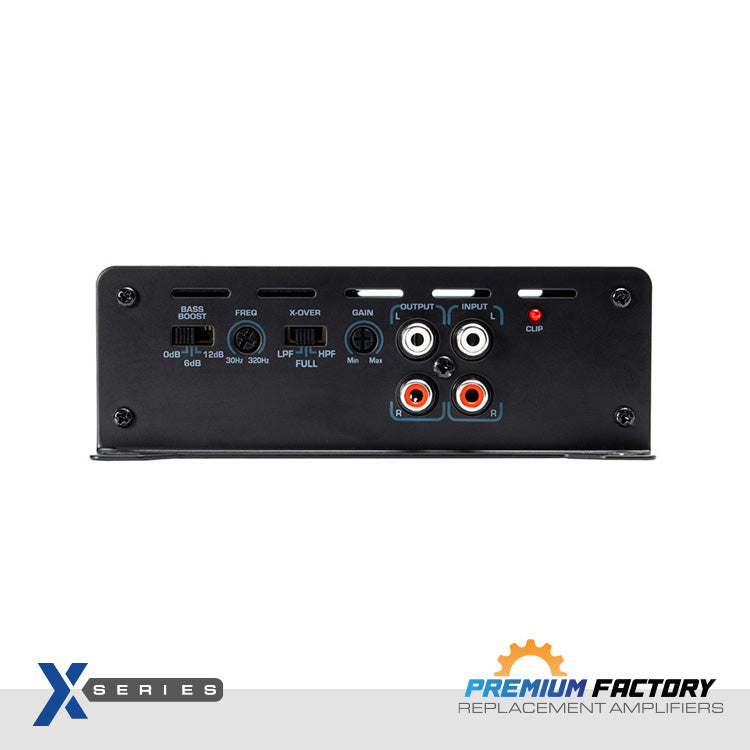

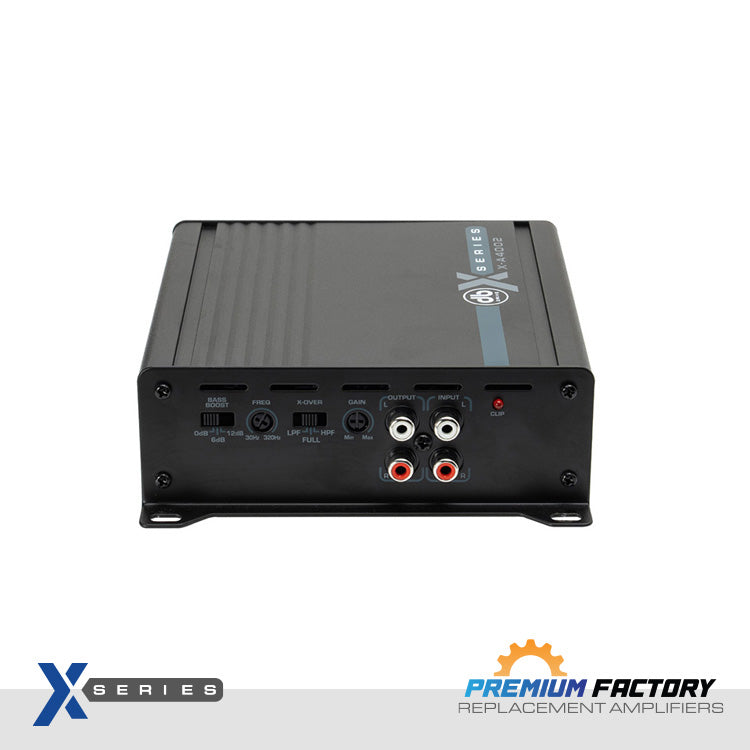

• Variable Filter: 30Hz-320Hz

• Variable Bass Boost: 0-12dB

Description

Want to upgrade the sound system in your vehicle, the DB DRIVE X-A4002 is your ultimate solution. Designed for both audiophiles and casual listeners, it offers dynamic, high-performance audio. Key Features: •    Powerful Output: 75W x 2 at 4 ohms, 150W x 2 at 2 ohms, delivering clear, full-range sound. •    Bridgeable Design: Easily drive a subwoofer for enhanced low-end performance. •    High-Efficiency Circuit: Perfect for modern vehicles with compact electrical systems. •    Adaptive HP/Lp Crossover: Fine-tune your audio for optimal sound.. •    4-Layer PCB: Delivers cleaner, more accurate sound. •    Compact Design: Easy to install without compromising on power. Transform your car into a concert hall with the  X-A4002 for sound like never before.
